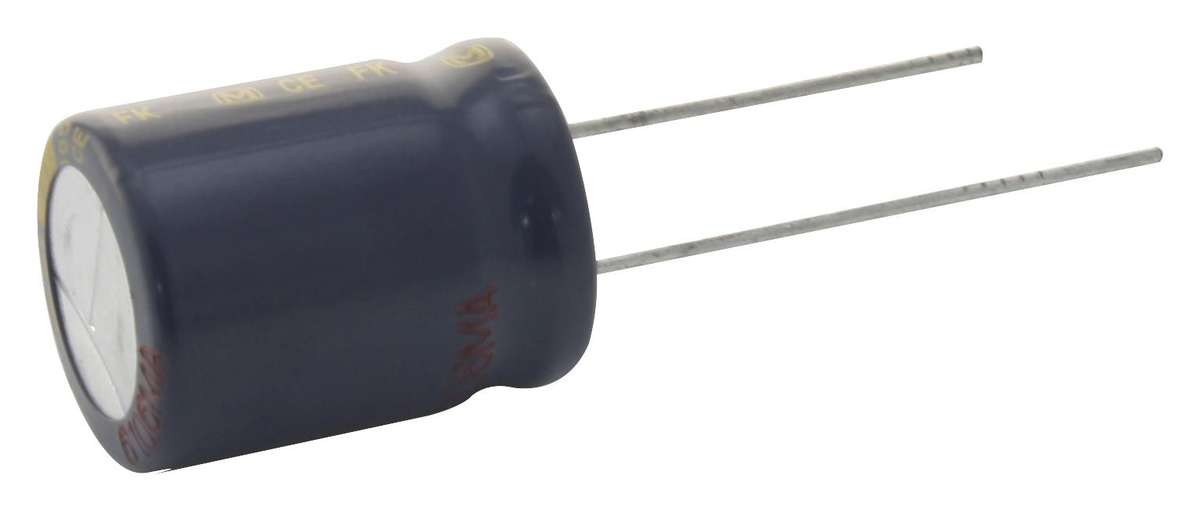

Panasonic (EEUFK1V332S) Electrolytic Capacitor, 3300 µF, 35 V, ± 20%

Electrolytic Capacitor, 3300 µF, 35 V, ± 20%, Radial Leaded, 5000 hours @ 105°C,PolarProduct InformationCapacitance: 3300µFVoltage Rating: 35VVoltage(DC): 35VCapacitance Tolerance: ± 20%Capacitor Terminals: Radial LeadedLifetime @ Temperature: 5000 hours @ 105°CPolarity: PolarSeries Name: FKDiameter: 18mmProduct Diameter: 18mmLead Spacing: 7.5mmHeight: 25mmProduct Height: 25mmOperating Temperature Min: -55°COperating Temperature Max: 105°CESR: -Lead Diameter: 0.8mmProduct Length: -Qualification: AEC-Q200Supplier Package: -Product Range: FKAutomotive Qualification Standard: AEC-Q200Product OverviewThe EEUFK1V332S is an aluminium Electrolytic Capacitor with radial leadedterminals and it features high reliability, long life, low impedance and highripple current. The FK-A series electrolytic capacitor is suitable for highreliability application such as an industrial instrument.PET sleeve sheathing (metal case) appearance2850mA RMS at 100kHz/+105°C Ripple current0.018R at 100kHz/+20°C Impedance
