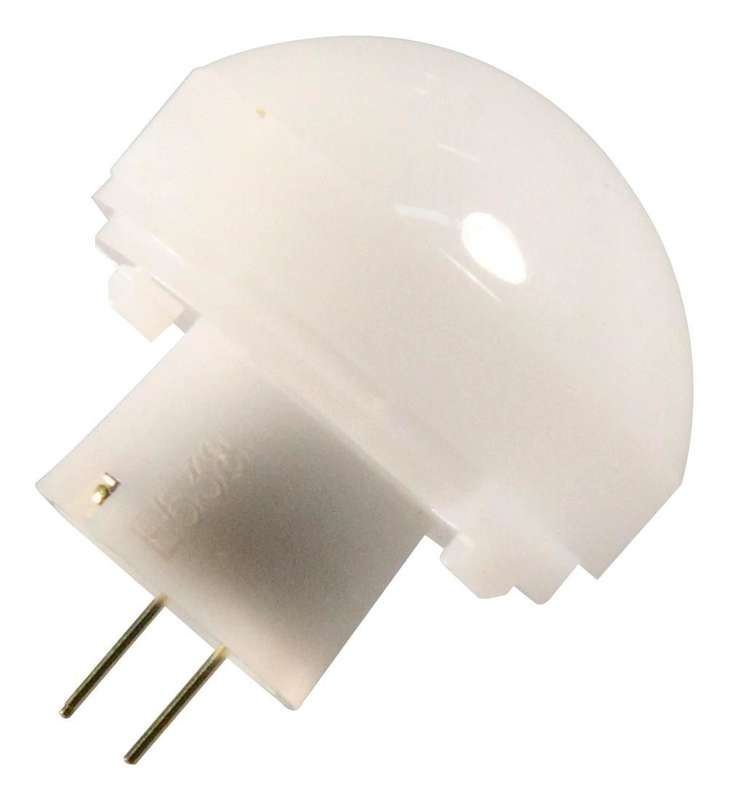

Panasonic (EKMC1603113) PIR Sensor, PaPIRS, Digital, Pearl White, 12 m

PIR Sensor, PaPIRS, Digital, Pearl White, 12 m, 3 VDC, 6 VDC, 102 °, EKMC SeriesProduct OverviewThe EKMC1603113 is a high-sensitive human detection PIR MOTION Sensor withbuilt-in amplifier. VZ series simplified circuitry with fully integrated circuitdesign. Reduction of current consumption allows battery life to be extended forbattery driven products, including wireless based and low power consumptiondevices. The entire circuitry is enclosed in a metal package, which means it hashigh electromagnetic shielding capability. A short focal length is all that'srequired even when detecting at the same distance, which means both downsizingand high sensitivity are achieved.Super low current consumptionSensing circuits enclosed in a TO5 canExcellent noise resistanceMiniaturized lenses with small elementApplicationsLighting, Sensing & Instrumentation, Security, HVAC, Commercial, Imaging, Video& Vision, Audio, Consumer Electronics, WirelessProduct InformationSensing Range Max: 12mSupply Voltage Min: 3VDCSupply Voltage Max: 6VDCBeam Angle: 102°Product Range: EKMC Series
