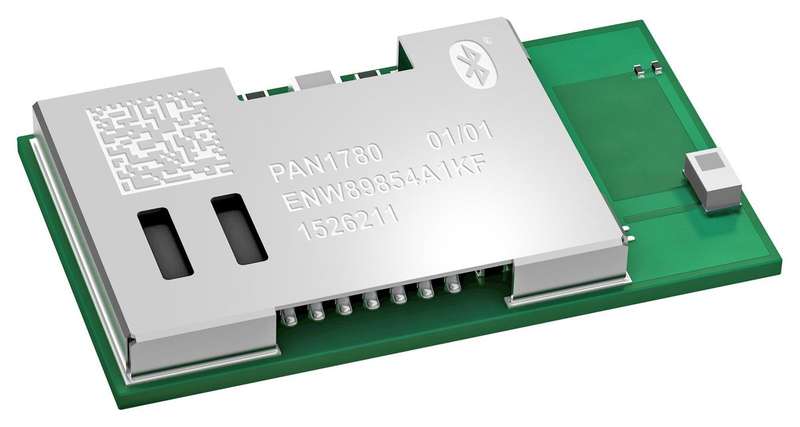

Panasonic (ENW89854A1KF) Bluetooth Module, Bluetooth LE 5.1, 2.45Ghz

Bluetooth Module, Bluetooth LE 5.1, 2.45Ghz, IEEE 802.15.4, 1.7V to 5.5VProduct OverviewBluetooth 5 Low Energy Module based on the Nordic nRF52840 single-chipcontroller. The Bluetooth 5 feature enables a higher symbol rate of 2Mbps usingthe high-speed LE 2M PHY. Furthermore, the new LE advertising extensions allowfor much larger amounts of data to be broadcasted in connectionless scenarios.In addition to Bluetooth 5, the qualified Bluetooth® mesh profile stack supports802.15.4 and NFC-A. With its ARM Cortex®-M4F a 1MB flash and a 256Kb RAM, thePAN1780 offers high design flexibility. It can easily be used in standalonemode, there by eliminating the need for an external processor - savingcomplexity, space and cost.Used IC nRF52840Rx sensitivity -95dBm at 1Mb/s, -103dBm at 125Kb/s8dBm max Tx powerGPIO, UART, QSPI, I2C, I2S, PDM, ADC, PWM, NFC-A, USB2.0 interfacesARM Cortex-M4F microcontrollerIntegrated 32kHZ crystal specialityProduct InformationBluetooth Version: Bluetooth LE 5.0Supply Voltage Min: 1.7VSupply Voltage Max: 5.5VSignal Range Max: -Data Rate: 2MbpsBluetooth Class: -Receive Sensitivity: -103dBmOperating Temperature Min: -40°COperating Temperature Max: 85°CProduct Range: PAN1780 Series
