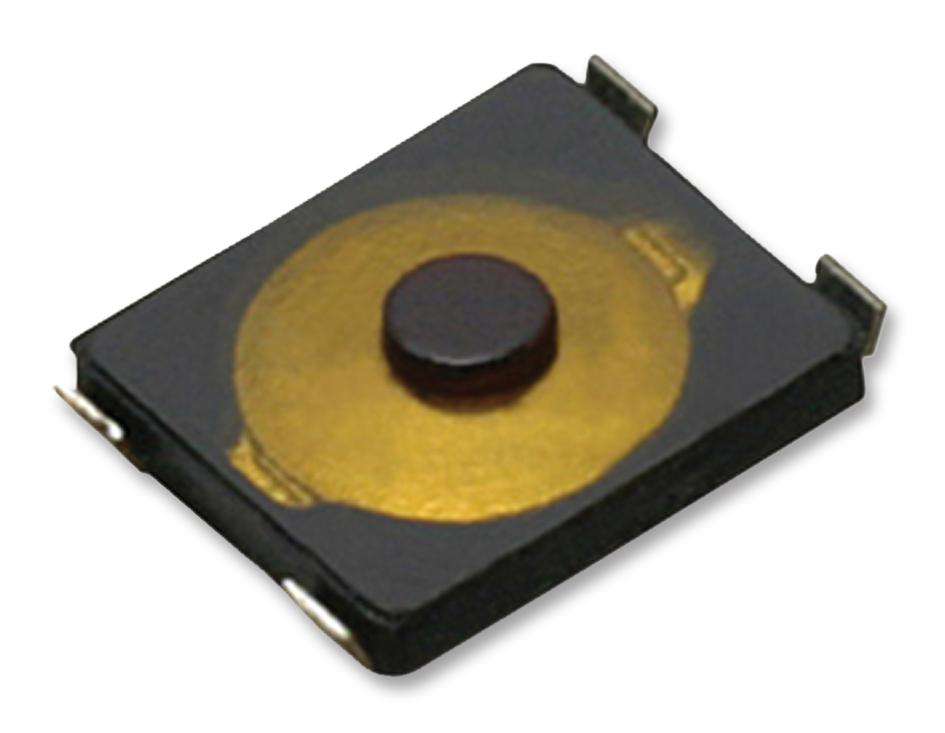

Panasonic (EVPAF7B70) Tactile Switch, Round

Panasonic (EVPAF7B70) Tactile Switch, Round

New 1650 available
R115.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 7 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
2425605
Bob Shop ID
645130365
Product Information:Switch Terminals: SMDProduct Range: EVPAFActuator Orientation: Top ActuatedSwitch Mounting: Surface MountActuator Style: Round ButtonContact Current Max: 20mAActuating Force: 245gfContact Voltage DC Nom: 15VContact Rating: 20mA at 15VDCOperating Force: 2.4NSwitch Dimensions (L x W): 3mm x 2.6mmIP Rating: -Illumination: Non IlluminatedProduct Overview:The EVPAF7B70 is a single-pole single-throw (SPST) surface-mount Light TouchSwitch with J-bent terminals. The light touch switch features high operability,equipped with an actuator (push plate) and low temperature use.50MR at 100VDC Minimum insulation resistance500mR Maximum contact resistance250VAC for one minute Dielectric withstanding voltage500000 cycles Operating life
