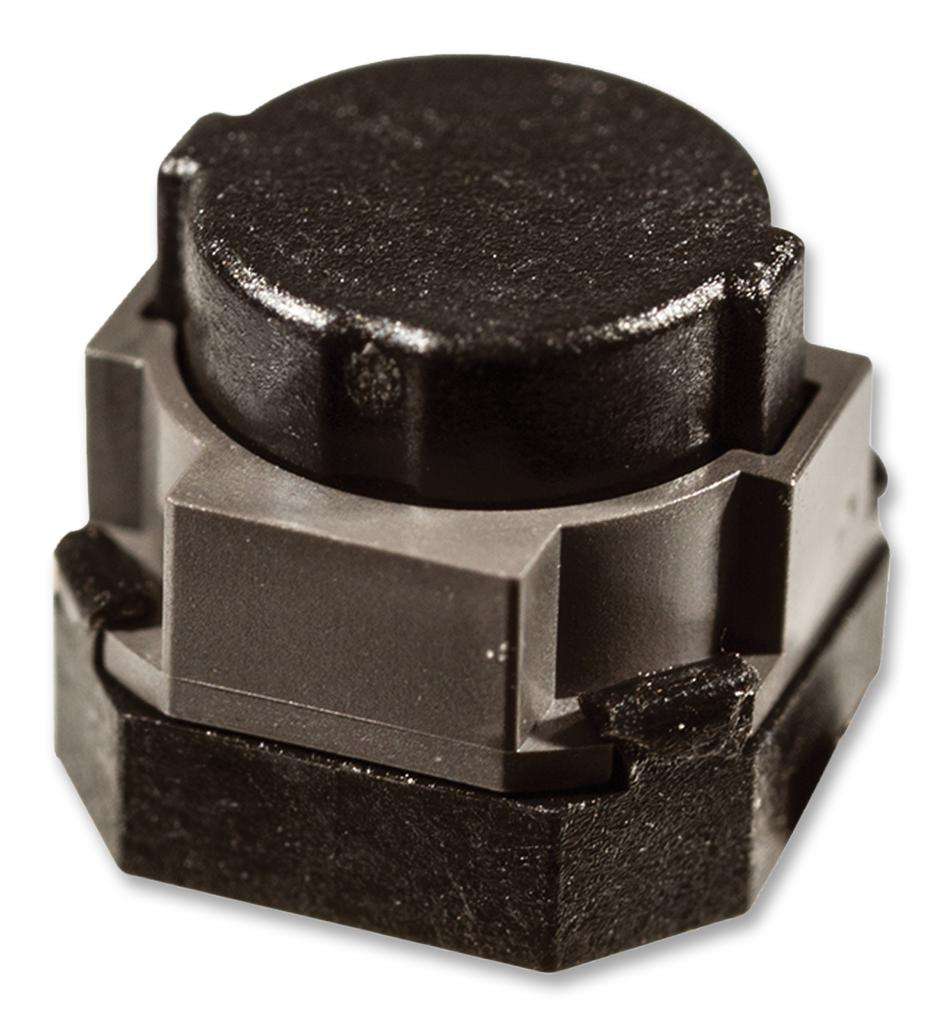

Product InformationSwitch Terminals: SMDProduct Range: EVPASActuator Orientation: Top ActuatedSwitch Mounting: Surface MountActuator Style: Round ButtonContact Current Max: 50mAActuating Force: 200gfContact Voltage DC Nom: 12VContact Rating: 50mA at 12VDCOperating Force: 2NSwitch Dimensions (L x W): 6mm x 6mmIP Rating: -Illumination: Non IlluminatedProduct Overview:The EVPASBC1A is a single-pole single-throw (SPST) surface-mount Light TouchSwitch with J-bent type terminals and black push plate. The light touch switchfeatures excellent solderability, steady and low contact resistance.100MR at 100VDC Minimum insulation resistance100mR Maximum contact resistance250VAC for one minute Dielectric withstanding voltage100000 cycles Operating life
