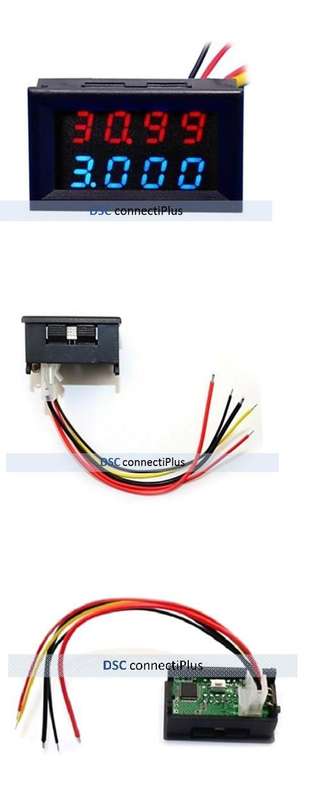

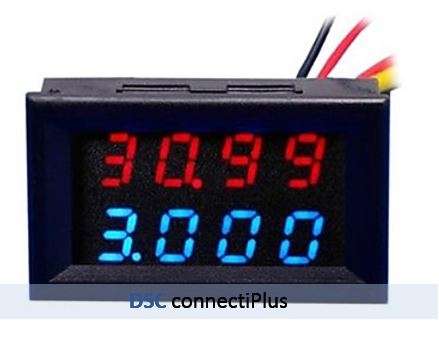

Panel Mount Wide DC Supply 3.5-28V, Test 0-33V 0-3A 4-Digit LED Digital Dual Voltmeter-Ammeter..!

Panel Mount Wide DC Input Supply 3.5-28V 0~33V 0~3A 4-Digit LED Digital Dual Voltmeter-Ammeter for Electronics DIY Projects & Development (Black)..!

Product Information

Features

Small size, portable, the magnitudes of voltage and current are displayed in the same screen simultaneously.

DC Voltmeter and Ammeter for cars, electromobiles and motorcycles etc. Also great for electronics and DIY projects.

Specifications

Color: Black

Material: Plastic

Operating voltage: DC 3.5 ~ 28V (wide range)

Measure voltage: DC 0.00 ~ 33.00V

Minimum resolution: 0.1V

Measure current: DC current 0~999.9mA~3.000A

Minimum resolution: 0.1mA

Operating current: <20mA

Display: three 0.28" LED digital tubes

Display color: Red (Volts), Blue (Amps)

Dimensions: 48 x 29 x 21mm

Mounting cutout: 45.5 x 26.5mm

Refresh rate: about 500mS / times

Measurement accuracy: 1% (1 digit)

Operating temperature: -10 to 65'C

Operating Humidity: 10 to 80% (non-condensing)

Working pressure: 80 to 106 kPa

Applications: Suitable for automotive/electric cars/motorcycles battery monitoring or other products voltage

and current measurement.

Wiring:

Black line (thin): power supply-

Red line (thin): power supply+

Black line (thick): COM, common line (measuring)

Red line (thick): I+, measurement current input+ (in series with measurement supply)

Yellow line (thin): V+, measurement voltage input+

Notice:

The supply voltage between the thin red and thin black lines must be within DC 3.5-28V

The ammeter can only be connected to the negative of the device under test

When the black thin line is vacant, it is recommended to use insulating tape around the exposed part of the wire, to

prevent short circuits.

If it is just used as a voltmeter, it is recommended that the yellow line and the black lines be connected

together, to prevent the ammeter digital flashing.

Package Contents

1x Digital Volt-Amp Meter
