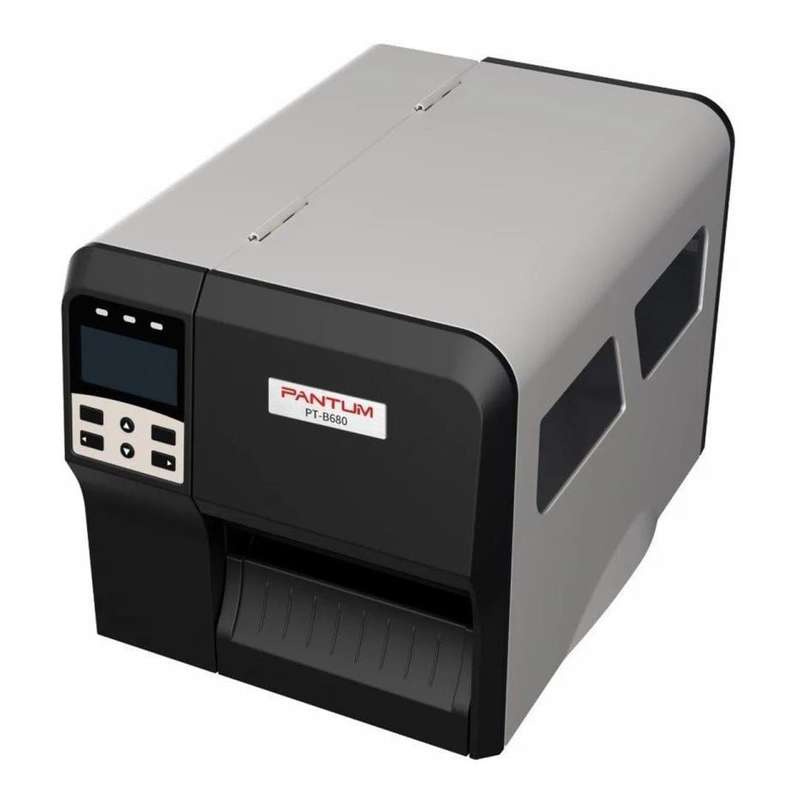

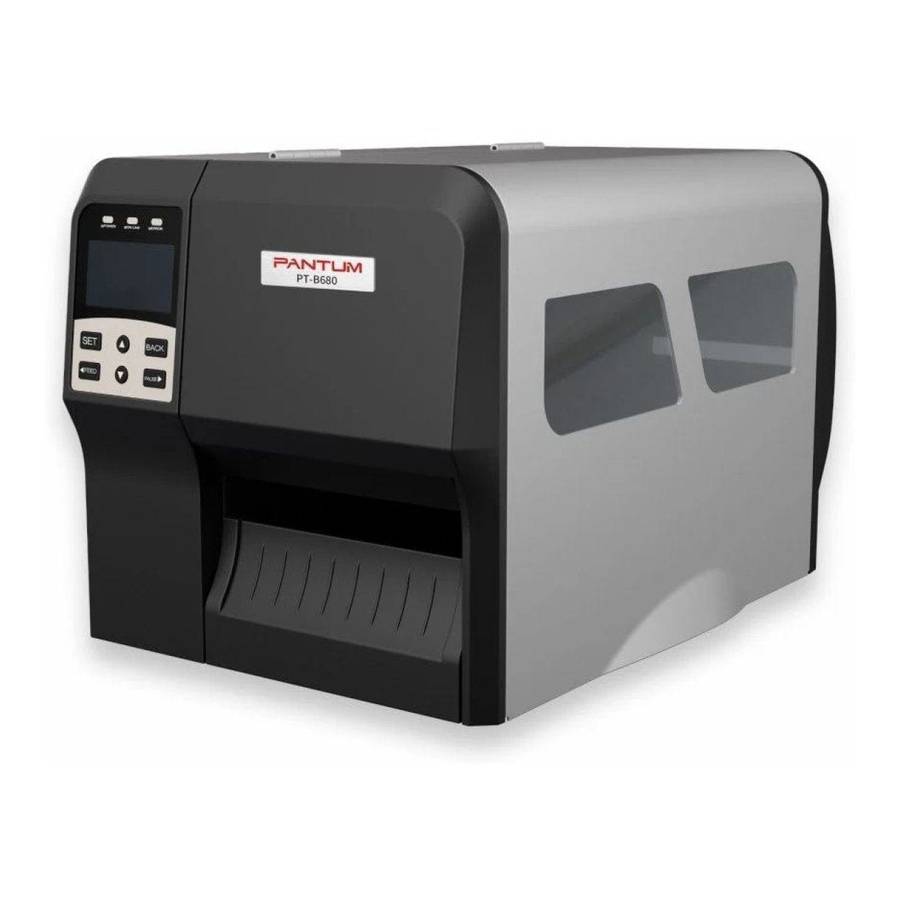

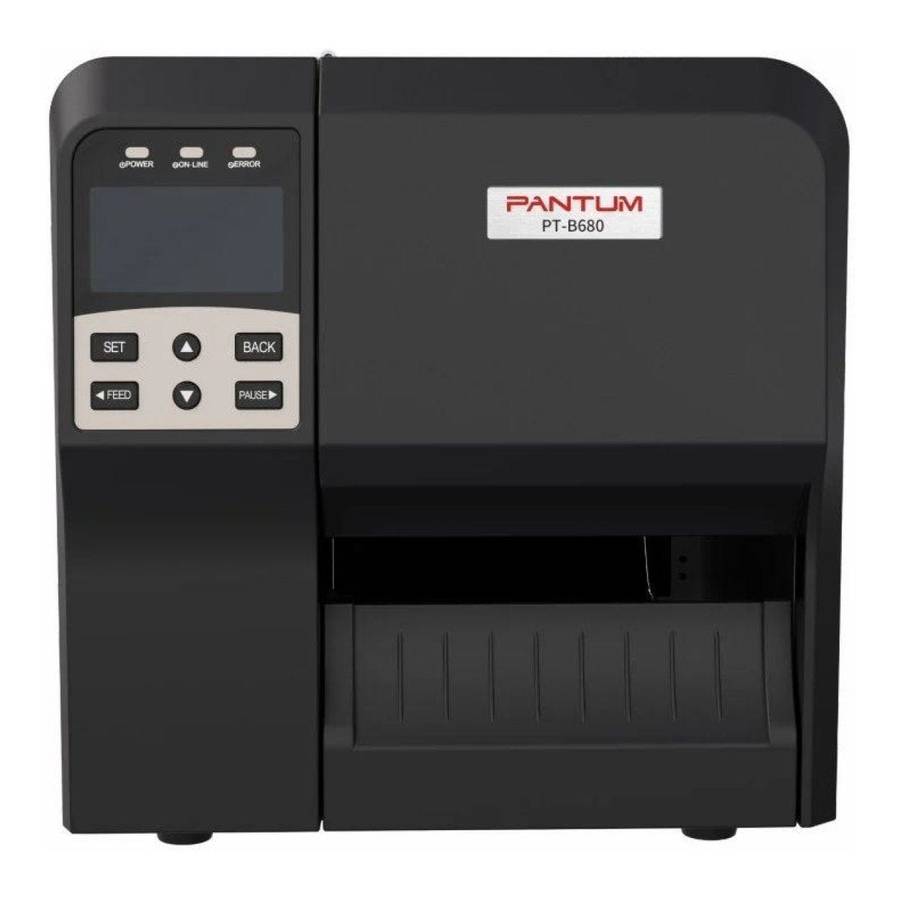

Pantum PT-B680 Thermal Barcode Label Printer

The Pantum PT-B680 is a thermal transfer barcode label printer designed for high-quality label printing in various applications, including retail, logistics, and manufacturing.

Specifications:

Printing Technology: Thermal Transfer and Direct Thermal

Print Resolution: 300 dpi

Maximum Print Speed: 203 mm/sec

Maximum Print Width: 106.7 mm

Maximum Print Length: 710 mm

Memory:

• 16 MB DRAM
• 8 MB Flash

Media Specifications:

• Label Width: 20 mm to 120 mm
• Label Thickness: 0.06 mm to 0.254 mm
• Maximum Roll Diameter: 203 mm
• Core Diameter: 25.4 mm to 38 mm

Ribbon Specifications:

• Width: 30 mm to 110 mm
• Maximum Length: Up to 450 m
• Core Diameter: 25.4 mm
• Maximum Roll Diameter: 81.3 mm

Connectivity:

• USB
• Ethernet
• RS-232

Supported Barcode Symbologies:

• 1D Barcodes: Code 11, Code 39, Code 93, Code 128, EAN-8, EAN-13, ITF, MSI, Plessey, UPC-A, UPC-E, and others
• 2D Barcodes: Aztec, Data Matrix, PDF 417, QR Code, and others

Physical Dimensions: 425 x 255 x 265 mm

Weight: 9.65 kg

Operating Environment:

• Temperature: 0°C to 40°C
• Humidity: 30% to 90% (non-condensing)
