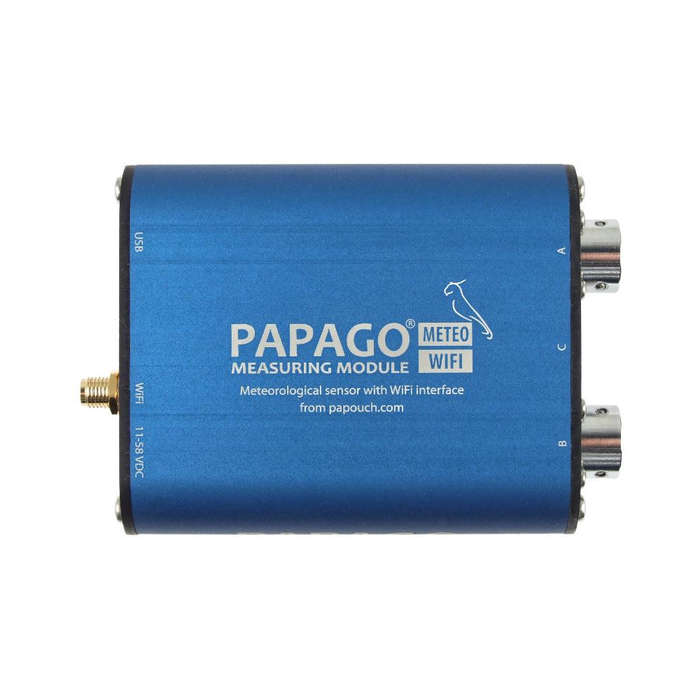

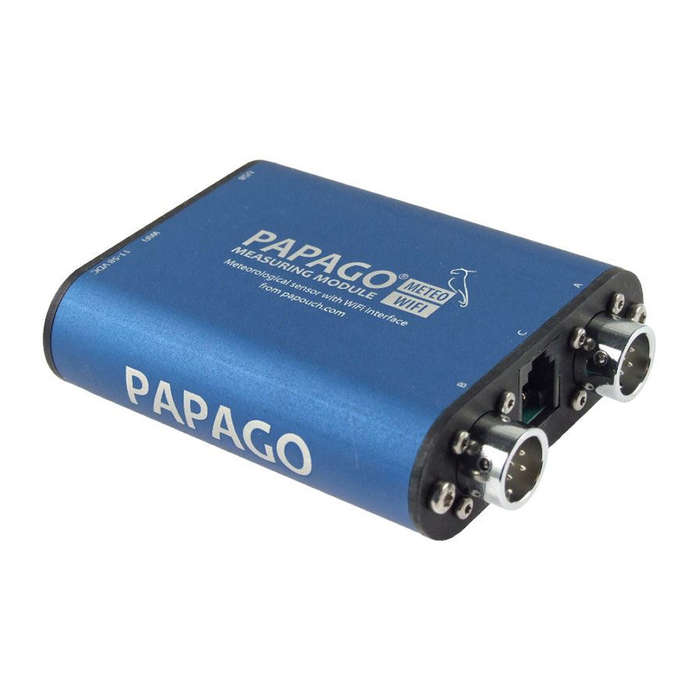

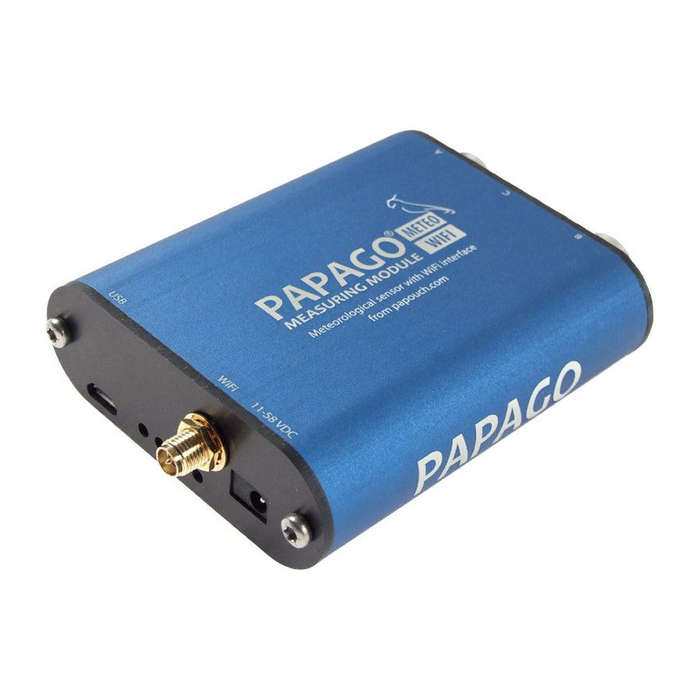

Papago Meteo WiFi can measure temperature, humidity, dew point, carbon dioxide (CO₂) concentration, wind speed and wind direction. Papago Meteo WiFi has ethernet interface with PoE power supply.

Papago Meteo WiFi belongs to a family of Papago modules with some common properties. These are mainly the following:

• Ethernet interface, internal website (in Czech and English) and many standard communication protocols
• WiFi 2,4 GHz (IEEE 802.11 b/g and IEEE 802.11n (one stream), IEEE 802.11 d/h/i/j/k/w/r)
• Network and WiFi parameters configurable via USB (microUSB connector)
• Antenna: SMA RP
• PoE power supply or an external source. PoE eliminates the need to use an external power supply.
• Internal memory and real-time clock. Measured data including the time of measurement is automatically stored in the memoryif the communication is lost. The data is automatically sent after the connection is restored.
• Elegant but robust metal box that can be mounted on a DIN rail. The box bears descriptions that allow connection without having to consult the manual. Also LED indicators for all important states help commissioning.
• The possibility to display, store and analyze data in the Wix, which is free of charge for a smaller number of measured parameters.

Sensors for Papago Meteo WiFi

It is possible to attach up to three sensors listed below (to corresponding connectors A, B, C, sensors are not included):

• Combined sensor: temperature (-40 to +125 C), humidity (0 to 100 %) and dew point (connector A or B)
• Temperature sensor: temperature (-55 to +125 C) (connector A or B)
• CO₂ sensor (Carbon dioxide): range 0 to 2000 ppm with accuracy 25 ppm, Non Dispersive Infrared Sensor (connector A or B)
• Wind speed and direction sensor: speed (0.5 to 89 m/s), direction (3) (only connector C)

Features of Papago Meteo WiFi

• Measurements per second: 1, 2 or 5 according to the settings
• PoE standard: IEEE 802.3af
• External power supply 11 to 58 V DC
• Typical power consumption 1.8 W
• Package contents: Papago Meteo ETH, patch cable 1m
• The device can send e-mails if set thresholds has been exceeded
