PAPAGO TH CO2 ETH: CO2, Temperature and Humidity sensor with Ethernet

Papago TH CO2 ETH can measure CO₂ concentration, temperature, humidity and dew point from up to two sensors. Papago TH CO2 ETH has ethernet interface with PoE power supply.

Papago TH CO2 ETH belongs to a family of Papago modules with some common properties. These are mainly the following:

• Ethernet interface, internal website (in Czech and English) and many standard communication protocols
• PoE power supply or an external source. PoE eliminates the need to use an external power supply.
• Internal memory and real-time clock. Measured data including the time of measurement is automatically stored in the memory if the communication is lost. The data is automatically sent after the connection is restored.

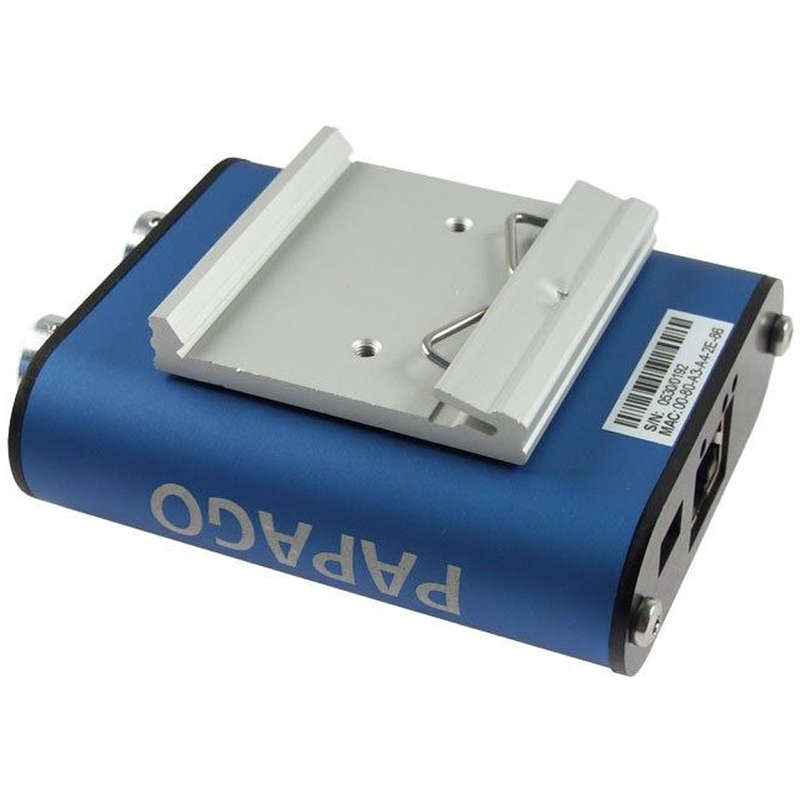

• Elegant but robust metal box that can be mounted on a DIN rail. The box bears descriptions that allow connection without having to consult the manual. Also LED indicators for all important states help commissioning.
• The possibility to display, store and analyze data in the Wix, which is free of charge for a smaller number of measured parameters.

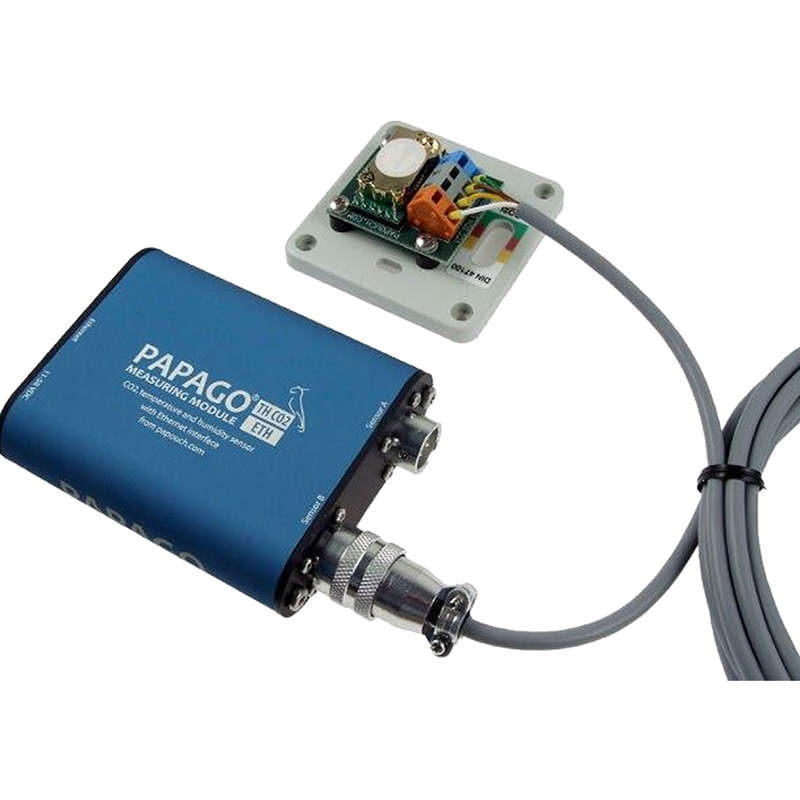

Sensors for Papago TH CO2 ETH

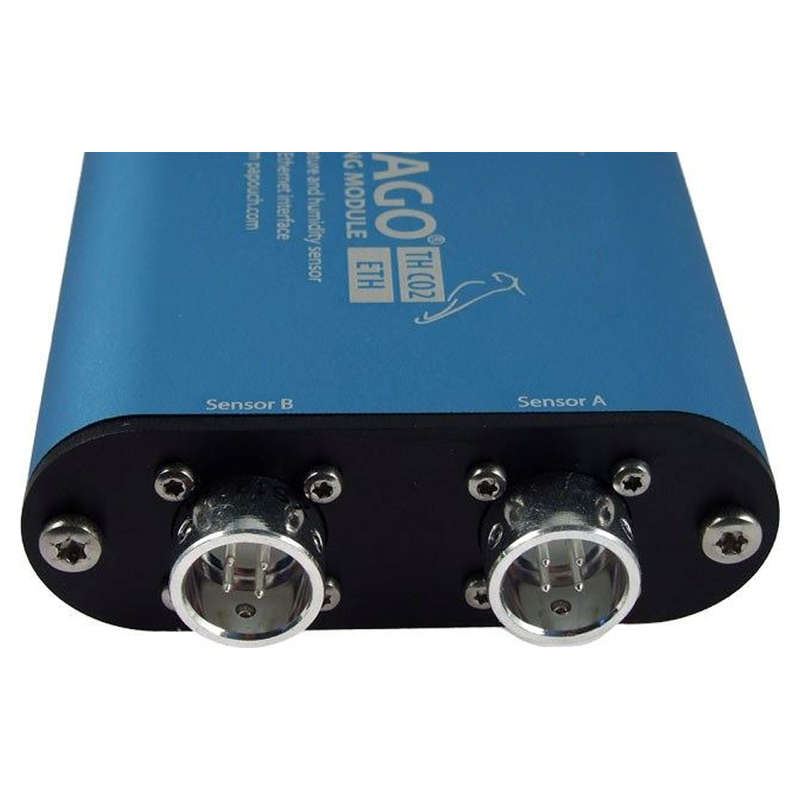

Each of the two inputs can be fitted with either of these two sensors (sensors are not included):

• Combined sensor: temperature (-40 to +125 °C), humidity (0 to 100 %) and dew point
• Temperature sensor: temperature (-55 to +125 °C)
• CO₂ sensor (Carbon dioxide): range 0 to 2000 ppm with accuracy ±25 ppm (Non Dispersive Infrared Sensor)

Features of Papago TH CO2 ETH

• Measurements per second: 1, 2 or 5 according to the settings
• PoE standard: IEEE 802.3af
• Possible external power supply 11 to 58 V DC,  (external power source not included, you can use this power source 15V/0,8A)
• Typical power consumption 1.8 W
• Package contents: Papago TH CO2 ETH, patch cable 1m
• The device can send e-mails if set thresholds has been exceeded

Communication possibilities of Papago TH CO₂

All products from the Papago range including, of course, the thermocouple thermometer Papago TH CO2 ETH provides a wide range of communications options. Thanks to protocols for machine reading, you can easily incorporate thermometers into your existing systems. It's naturally also possible to control the Papago through the web or using Windows software.

• MODBUS TCP  a standard industry protocol
• SNMP (including TRAP messages for specific events)
• HTTP GET with open or encrypted data (128bit AES)
• EMAIL for specific events (e-mail without SSL)
• XML with the currently measured data
• Spinel (binary protocol developed by Papouch Company)

Example XML data from Papago:
