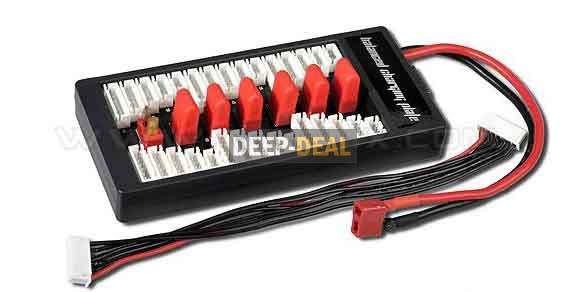

Para Board 1-for-6 Parallel Charger Adaptor RC Battery

Para Board 1-for-6 Parallel Charger Adaptor RC Battery
Spec.
Cell: 2~6S
Voltage: 0~22.2VDC
Max current: 30A
Battery: 6 packs same capacity & cell count
Connector: T Connector

This product is used for simultaneously charging multiple lithium batteries(including LiPo, LiFe,

and Li-ion types) in parallel.

Main Features:

1.Convenient to charge and balance up to six lithium batteries at the same time when used with a

balance charger.

2.The charging time is significantly reduced since all batteries are balanced at the same time

instead of balancing batteries one by one.

3.It can significantly accelerate battery charging speed. Taking six 2.2 Ah LiPo batteries as an

example, if the pack is charged one by one at 1C rate (2.2A), typically it will take around six hours.

When using the parallel charging board to charge all the packs at the same time, the charge rate

can be set to 13.2 A (2.2x6=13.2A), and it will take only one hour for the packs to be fully charged

and balanced.

4.The product is made of high quality parts,all the metal

parts of power connectors are plated with 7u gold, andall the cables are made of soft silicon wires.

5.According to the types of battery power connectors and balance head,we are providing different

versions:JST-XH/T-plug; JST-XH/EC3; JST-XH/XT60; JST-XH/EC5;Thunder power/T-plug;

Thunder power/EC3; Thunder power/XT60; Thunder power/EC5;Hyperion/T-

plug;Hyperion/EC3;Hyperion/XT60;Hyperion/EC5.Kokam/EC3;

Kokam/EC5;Kokam/T-plug;Kokam/XT60

Note:This item is
T Connector
