PATIO MIST COOLING KIT (10M)

DIY Outdoor Misting System

Upgrade your outdoor with the power of mist. The fantastic outdoor cooling system provides a cool environment from the heat for your favorite outdoor areas. Help you beat the summer, and what's more, it will help to prevent the mosquito when cooling off.

It's great for:
Agriculture irrigation for lawn, garden, patio, greenhouse
Swimming pool misting fog cooling
Mist mosquito system
Mist sprayer for reptile, snake, chameleon

Specifics:
Nozzle Orifice: 0.6mm
Water Flow Rate: 1.5 GPH
Water Range Diameter: 1.5 feet
Working Pressure: 38-60 PSI
Max Pressure: 70 PSI

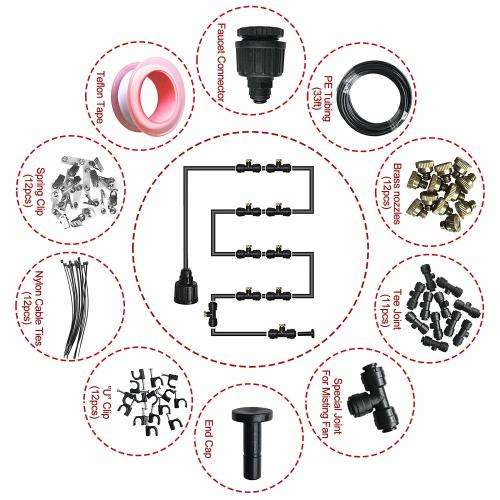

Kit Contents:
1 x 1/4" PVC tube (ID4mm/OD7mm)
1 x 1/2" 3/4" garden tube quick socket
30 x Plastic mister nozzles
1 x End connector
29 x Tee connector
30 x cable ties

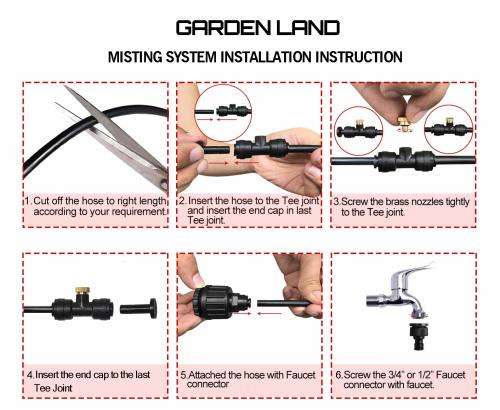

Installation instructions:
1.Cut the black tube into several parts according to your requirements
2.Assemble the misting nozzles with Tee Connectors / End Connectors
3.Attach the nozzles into the tube (Tips: Put the connected part of the tube into the hot air for about 10 seconds and about 3 turns before assembling. The idea is very hot air, not direct contact with the flame)
4. Use the cable ties to fix the tube

Assemble Tips:
1. Make sure when you cut the rubber tube, to cut it straight and not at an angle.
2. Put ONLY 1-2mm(<5mm) of the tube into Hot Water for about 1-2 seconds to soft it first.
3. Insert the Tee Connector quickly with enough grip. (Slowly twisting may damage the tube, and affect the function of the misting or leak)
4. You could try to add a water pump(DO NOT exceed 60W) to get better mist, or when your local pressure is too low.
