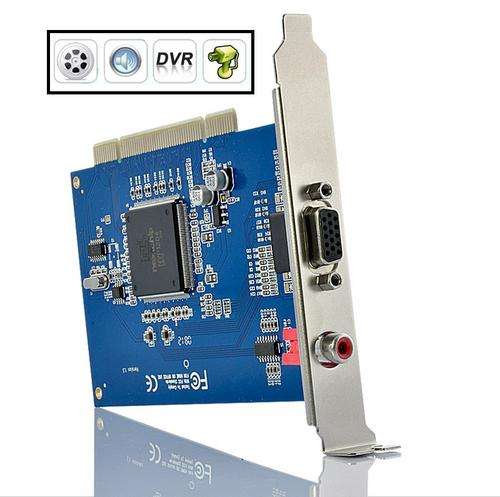

PC DVR Card - 8 Video and 4 Audio CH (PAL + NTSC)

 DVR card with 8 channel video input, 4 channel audio input and a TV out - Turn your computer into a digital video recorder and capture live video feeds directly to the hard drive or for viewing on your TV.

This DVR Card is easy to install and even easier to use: simply insert it inside your computer's PCI slot, install the drivers, plug in the security camera through the handy BNC connectors, and you'll be up and running with the ability to record and monitor amazing realtime surveillance footage from up to 8 security cameras. If that's not enough, the DVR card can also capture audio from up to 4 channels so you are sure to have the context to go with the content. Along with a single TV out slot, this DVR card has everything you need to create a high quality surveillance system that you can view on the large screen.

This DVR card also has the ability to save videos and take picture snapshots onto your computer and categorize them for future use. Video recording file size ranges from 600MB/hour to 100MB/hour, so you can go for quality or quantity, whichever fits your needs! Combined with features such as programmable timer recording, alarm triggered recording, and much more, you can be sure that your security system is keeping full alert around your place when you're not present. Along with the built-in camera pan/tilt/zoom functions and an easy to use graphical user interface, you'll have complete and total access straight from your computer.



At a Glance...

• Realtime 8 channel video input, 4 audio input
• 760x576 resolution and 30fps recordings
• Support both PAL and NTSC standards
• Easy to use graphical user interface with Pan/Tilt/Zoom control
• Configurable recording options: Scheduled recording, Alarm triggered recording, and much more



Manufacturer Specifications

• Compression: H.264/MPEG-4
• Operating System: Windows XP, Vista and Windows 7
• Preview Resolution: 704*576(PAL), 640*480(NTSC)
• Operation Mode: Record, Playback, Preview, Backup, Network
• Video input: 8 ch
• Video input interface: BNC
• HDD Occupation: 150-200 MB per hour per channel
• Record Frames: 25fps PAL,30fps NTSC
• Record Resolution: 352*288(PAL),320*240(NTSC)
• Playback Mode: Ulti-channel playback, forward & backward
• Audio input: 4ch
• PTZ Control Support: Pelcod D/P, Setting presetting spot, controlling and remote controlling PTZ Lens
• Network Protocol: 10/100 Base-T TCP/IP,UDP,HTTP,NTP,DHCP,DDNS
• Network Function: IE Remote monitoring/Remote Control/Remote setup/Remote playback
• Record Mode: Continuous/Schedule/Motion/Alarm
• Multi-Language Support: English, Traditional Chinese, Simple Chinese, French, Turkish, Russian, Spain, Hebrew Hungarian, Polish
• Power Source: PCI Card Slot
• Dimensions: 155mm X 95mm x 15mm (PCI standard height)

Package Contents

• DVR Card
• Software/Manual/Driver CD
• Video/audio connector cable
