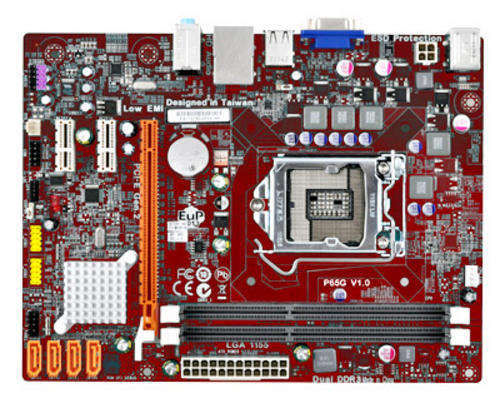

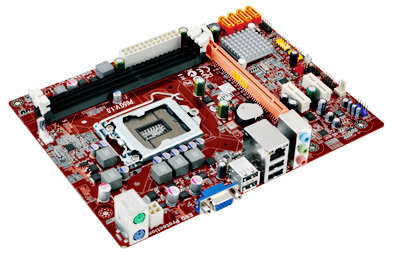

PCCHIPS INTEL H61 CHIPSET LGA1155 GAMING MOTHERBOARD (BRAND NEW)

PCCHIPS INTEL H61 CHIPSET LGA1155 GAMING MOTHERBOARD (BRAND NEW)

 Target to meet DDR3 platform demands of enthusiasts and gamers.support LGA1155 for Intel sandybridge processors with H61 single chipset . allows you to build powerful PCs on a budget. Supporting dual channel 2 DIMMs DDR3 memory up to 16GB at 1333/1066, it is the best MB with VGA integrated.Atheros AR8151 10/100/1000 Lan and 6-channel HD audio are also included on this Windows 7 ready motherboard"

LGA1155 socket for new 2nd Generation Intel® Core™ i7 series processor/Intel® Core™ i5 series processor/Intel® Core™ i3 series processor/Intel® Pentium® processors/Intel® Celeron® processors

4 +1Phase Power Design with VRD 12.0 Compliant

Chipset
Intel® H61 Express Chipset

Memory
Dual Channel DDR3 1333 memory architecture
2 x 240-pin DDR3 DIMM sockets support up to 16GB
Supports DDR3 1333/1066 SDRAM

Expansion Slots
1 x PCI Express x16 Gen 2.0 slot
2 x PCI Express x 1 slots

LAN
Atheros AR8152-B 10/100 Fast Ethernet Controller(Co-lay AR8151-B Gigabit Lan)

Audio
VIA VT1705 6-channel High Definition audio Codec
Compliant with HD audio specification

Intel Integrated Graphics

Storage
Support by H61
4 x Serial ATAII 3.0Gb/s devices
Back Panel I/O Ports

1 x VGA port
1 x RJ 45 Port
1 x Audio I/O (Line-in, Line-out and Mic-in)
4 x USB 2.0 Ports

Internal I/O Connectors & Headers
1 x 24-pin ATX Power Supply connector
1 x 4-pin 12V Power connector
1 x 4-pin CPU_FAN connector
1 x 3-pin SYS_FAN connector
1 x Speaker header
1 x CLR CMOS header
1 x Serial port header (COM)
4 x Serial ATA II 3Gb/s connectors
2 x USB 2.0 header support additional 4 USB2.0 ports
1 x Case open header
1 x Front panel audio header
1 x Front panel switch/LED header
1 x LDC header

Form Factor
Micro ATX Form Factor, 225x170mm

CLICK HERE TO VIEW DETAILED SPECS

 Please ask if you have any questions / doubts before bidding, If your bid without any questions, it will be assumed that you read all the contents and understand completely.
