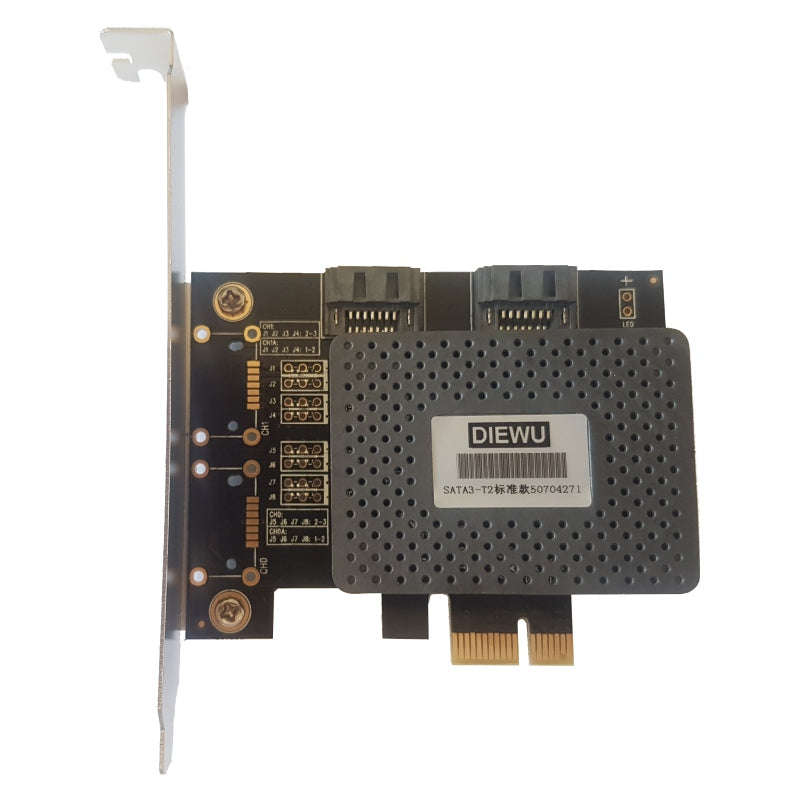

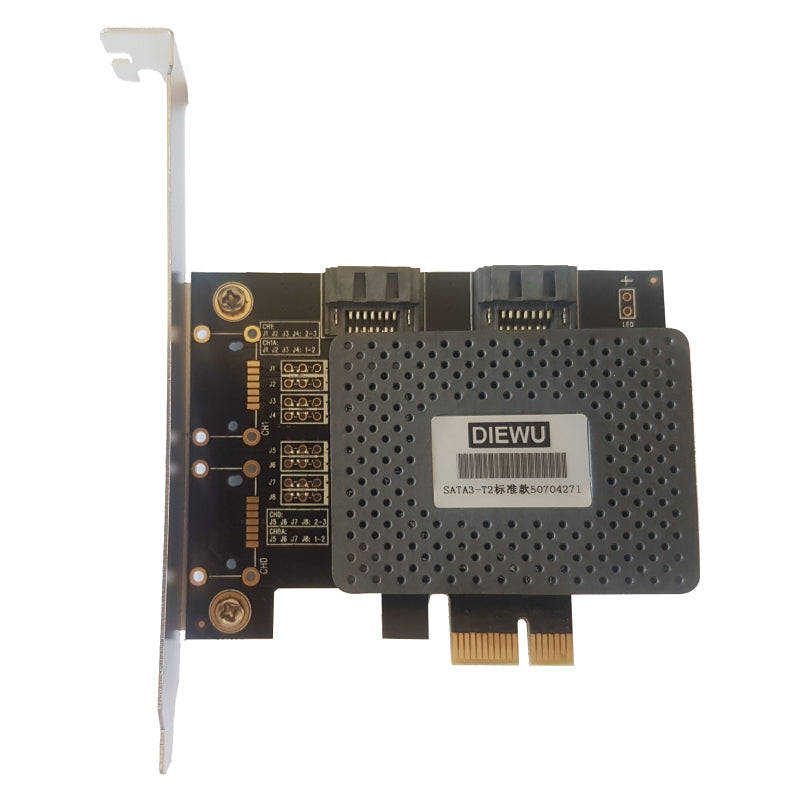

PCI-E TO DUAL SATA 3.0 EXPANSION ADAPTER

PCI-E TO DUAL SATA 3.0 EXPANSION ADAPTER - PCIE001

Features

A super-fast and high-capacity data transfer solution

Stable and reliable chipset ASMEDIA ASM1061

Compliant with Serial ATA Revision 3.0 specification

Compliant with Single-Lane (x1) PCI Express specification revision 1.0

Data transfer rate up to 750MB/s (6.0Gbps)

Supports 2.5Gbps PCI-E bus with full duplex channel

Supports two independent SATA 3.0 channels. (Supports 2 SATA devices at the same time.)

Supports ATAPI devices: CD-ROM, DVD-ROM, etc

No external power required for the card

Supports hot-swapping

Driver supports: Windows XP/Server2003/Server2008/Vista/Win7

Specification:

Model No.:DW-SATA3-T2

Interface:PCI express card

Port:2 x SATAIII port or 2 x eSATAIII port

Transfer data speed: up to 6Gbps

Chipset:ASM1061

Speed

Speed for SATA3.0-- 6Gbps

Speed for SATA2.0--300MB/S

Speed for SATA1.0--150MB/S

Color: Black

Operating Temperature

10°C~40°C

Storage Temperature

-10°C~80°C
