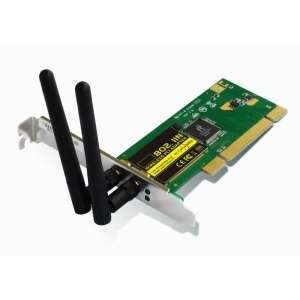

PCI WIRELESS LAN ADAPTER 802.11N
Share your high speed internet connection, files, printers, and multimedia with this 802.11N PCI Wireless LAN Adapter.
This is a PCI Wireless-N Adapter with IEEE 802.11N (draft) compatible that is fully backward compatible with IEEE802.11G/B standards.
This adapter gets up to 300Mbps downlink and 150Mbps uplink faster speed. It is an ideal device sharing high speed internet connections, files, printers, and multimedia communications with the flexibility speed and security you need.
The Wireless-N PCI Adapter will install in most desktop or server's PCI port. It allows you to put your computer almost anywhere in your house, apartment, or building. The enhanced MIMO technology allows you to solve any weak signal problems and also enables you to extend the range of your wireless network up to 3 times farther wireless range than regular IEEE802.11b/g adapters.
This adapter comes with software drivers for the most popular Microsoft Windows operating systems and can be integrated into a larger network, running Windows XP, 2000, Vista in either Ad Hoc mode (without an Access Point) or Infrastructure mode (with an Access Point).
WEP encryption and Wi-Fi Protected Access (WPA), and further enhanced with 802.1x authentication security. With drivers and utility available for most commonly used Windows OS. The 2.4GHz 802.11n/g/b Wireless-N PCI Adapter is a truly solid-design networking device that provides you with the ultimate freedom of wireless networking anywhere.
A setup wizard is provided as the part of the web configuration utility. You can simply follow the step-by-step process to get your wireless-N PCI adapter configuration ready to run in few easy steps.
Infrastructure Mode Application Diagram
The AP Router establishes an infrastructure mode for networking between all wireless clients and Ethernet resources.
Wireless Ad-Hoc Application Diagram
The wireless Ad-hoc mode is established by several wireless clients, which have the same SSID and radio channel. The wireless USB/PCI/PC Card adapters can be used for such peer-to-peer communication mode.
Features
•Adopts MIMO technology for wireless rates of up to 300Mbps
•Provides two methods of operation: Infrastructure and Ad-Hoc
•Quick Secure Setup, complies with WPS for worry free wireless security
•Adopts CCA technology which automatically avoids channel conflicts using its channel selection feature
•Supports 64/128/152-bit WEP, complies with 128 bit WPA standard(TKIP/AES), supports MIC, IV Expansion, Shared Key Authentication, IEEE 802.1X
•Easy Configuration and monitoring
