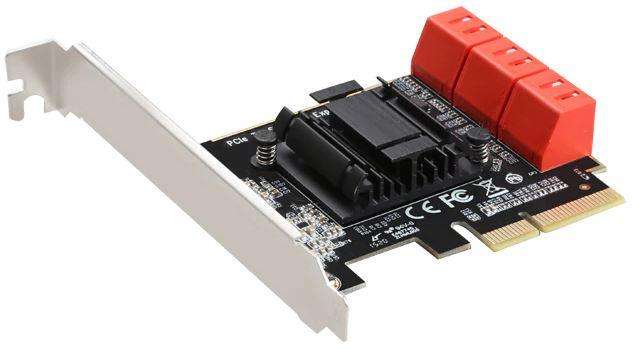

PCIE3.0-1X TO 6 SATA3 EXPANSION - TXB113
The TXB113 Is 6-Port SATA III (6 Gbps) To PCI Express x2 Gen 3 Host Card
It adds 6 AHCI SATA III Port to Computer though a PCIe Slot (x4)
Delivering Multiple Internal 6Gbps Connections for High Performance Hard Drives and Solid State Drives (SSDs)
With full Support for SATA 3.0 Hard Drives and Data Transfer Speeds of up to 6Gbps
The Adapter Card feature a native PCI Express single Chipset that provides enhanced compatibility
Reliability and Performance for Internal SATA 600 MB/s Storage needs
Features
6 AHCI SATA III (6 Gbps) ports through PCI Express x4
Fully compliant with SATA 3.0 Specifications and backward Compatible with SATA I/II (1.5/3.0Gbps) Drives
Compliant with PCI Express 3.0 Standards
Port Multiplier Command-Based Switching Supported
Natively Supported single Chipset Design
Support Native Command Queuing (NCQ)
Support SSC for both PCIe and SATA
Includes Low Profile/Half-Height Installation Bracket
Data Sheet: Hardware
Bus Type: PCI Express x4
Card Type: Standard/Low Profile
Chipset ID: ASMedia - ASM1166
Interface: SATA
Ports: 6
Performance
Bootable: Yes
Hot Swap Capability: Yes
Port Multiplier: Yes
Type And Rate: SATA III (6 Gbps)
Connector(s)
Connector Type(s): 1 - PCI Express x 4 Male
Internal Ports: 4 - SATA (7 pin, Data) Plug
Software / OS Compatibility
Windows 7, 8.x, 10
Windows Server 2008 R2, 2012, 2016,2019
Linux 2.6.x to 4.x
Special Notes / Requirements
System And Cable Requirements
PCI Express enabled Computer with an available PCI Express x4, x8 or x16 slot
Environmental Humidity: 20 - 80% RH
Operating Temperature: 5 to 50 (41 to 122)
Storage Temperature: -25 to 70 (-13 to 158)
Physical Characteristics
Product Height: 120 mm
Product Length: 88 mm
Product Weight: 41 g
Product Width: 22 mm
What's In The Box Included
In Package
1 PCIe SATA Controller Card
1 Low Profile Bracket
