PD01 433MHz Wireless PIR Motion Detector Infrared Sensor for Home Security System

Description :
PIR motion detector passive infrared sensor is designed to detect human movement indoor.
Adopted advanced fuzzy logic chip and intelligent analysis distinguish signal between body movement and interference to minimize false alarm.
Features :
Power supply: DC 3V ( include 2pcs 1.5V AA batteries )
Standby current: no more than 35uA
Alarm current: no more than 19mA

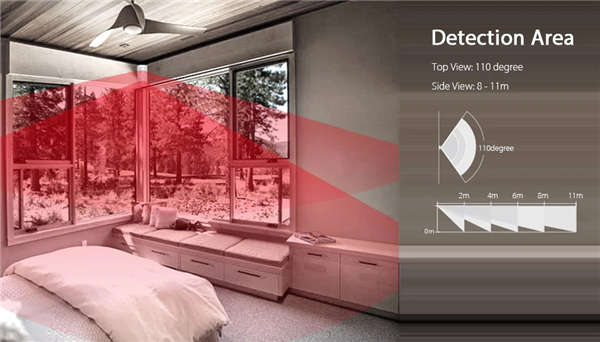

Detection area: 8 - 11m / 110 degree
Wireless transmit distance: no more than 100m ( in open area )
Wireless RF frequency: 433MHz
Temperature: -10 - 55 degree centigrade
Humidity: no more than 80 percent ( non-condensing )

Note :The new bought PIR motion detector should enroll to the control panel before use
Specification :
Model: PD01
Material: Plastic
Color: White
Product weight: 0.0810 kg
Package weight: 0.1280 kg
Product size (L x W x H): 9.00 x 5.50 x 4.00 cm / 3.54 x 2.17 x 1.57 inches
Package size (L x W x H): 13.00 x 7.00 x 5.00 cm / 5.12 x 2.76 x 1.97 inches
Package includeds :
1 x PIR Motion Detector

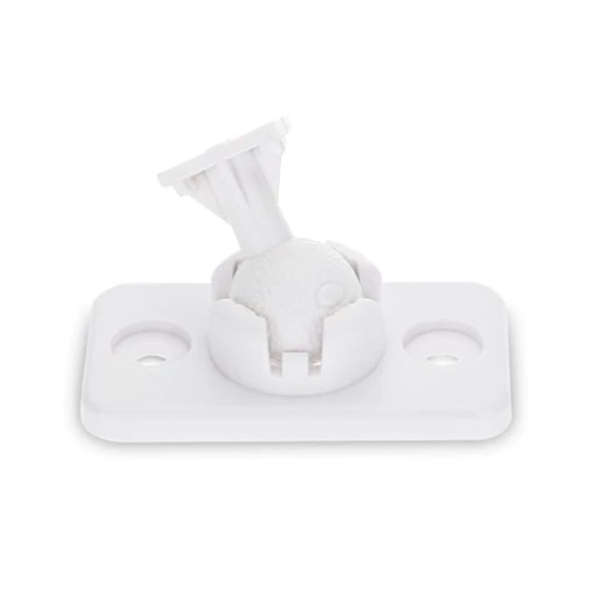

1 x Wall Bracket
3 x Screw
2 x Screw Cap
1 x English User Manual

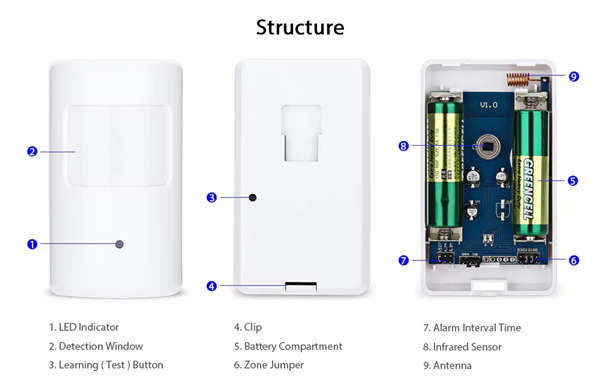

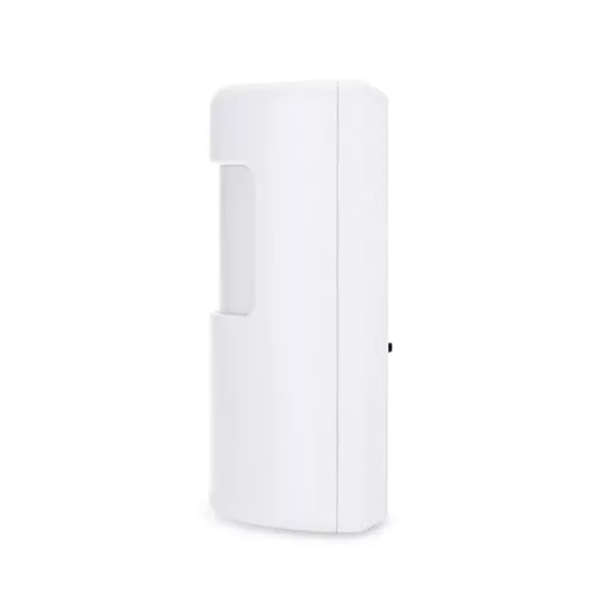

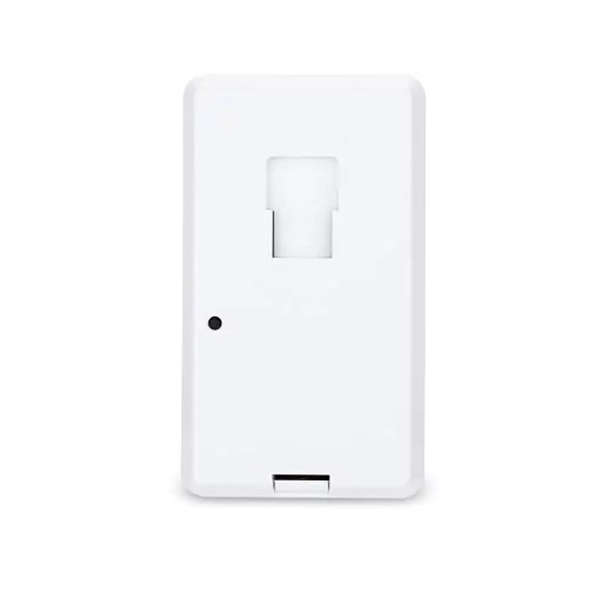

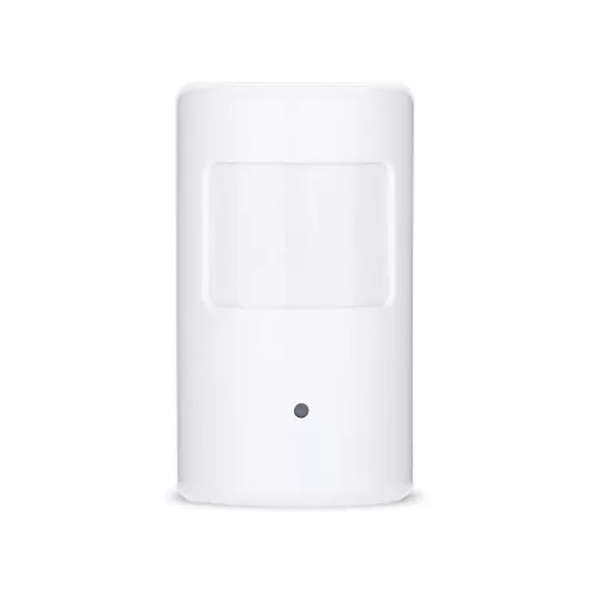

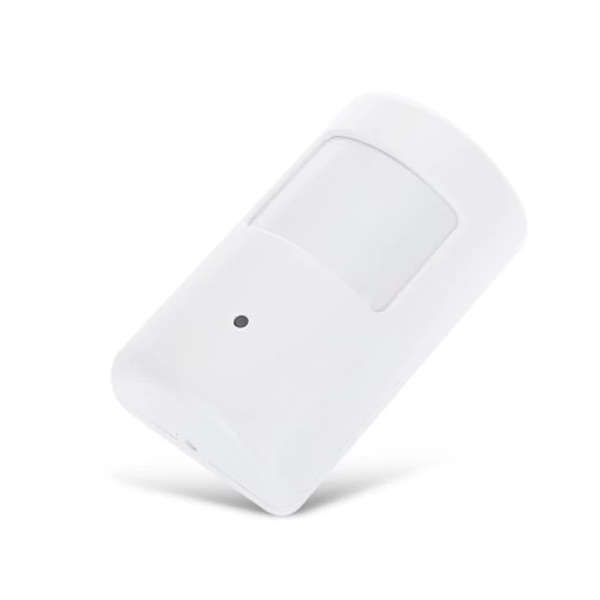

Details pictures :
