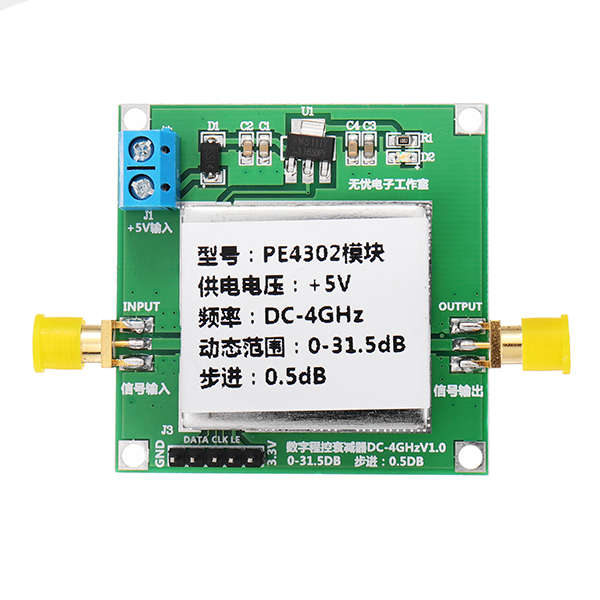

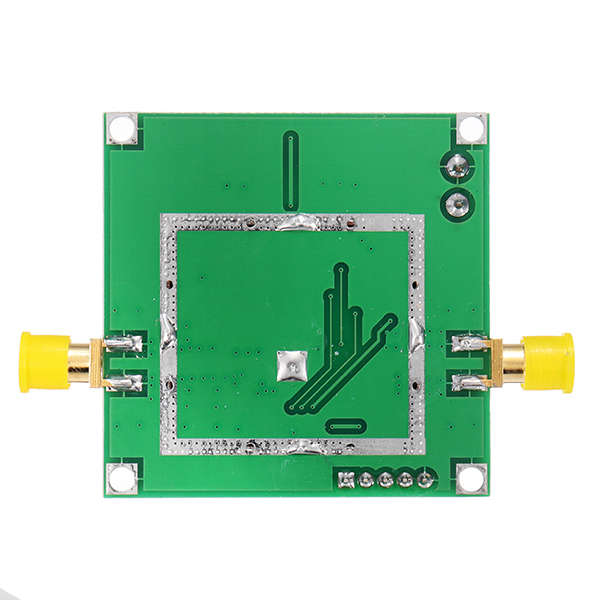

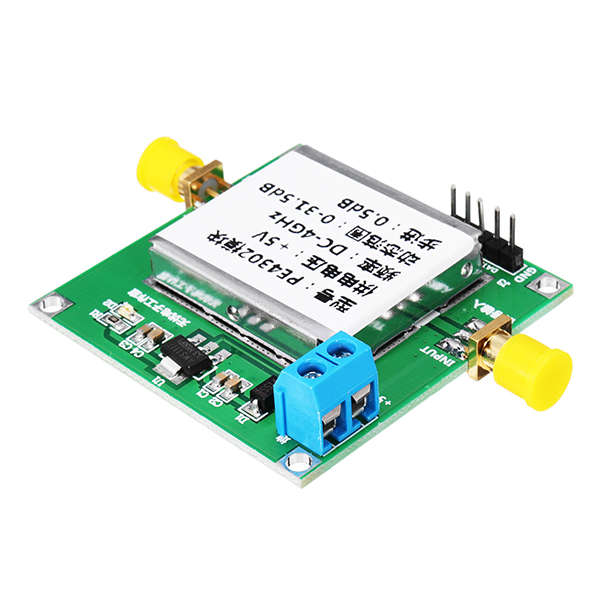

PE4302 Digital RF Step Attenuator Module DC 4GHZ 0-31.5DB 0.5dB High Linearity

Features:

The PE4302 is a high linearity, 6-bit RF Digital Step Attenuator (DSA) covering a 31.5 dB attenuation range in 0.5 dB steps.
This 50-ohm RF DSA provides both parallel and serial CMOS control interface operates on a single 3-volt supply and maintains
high attenuation accuracy over frequency and temperature. It also has a unique control interface that allows the user to select an
initial attenuation state at power-up. Having shielding shell and anti-reverse protection diode.

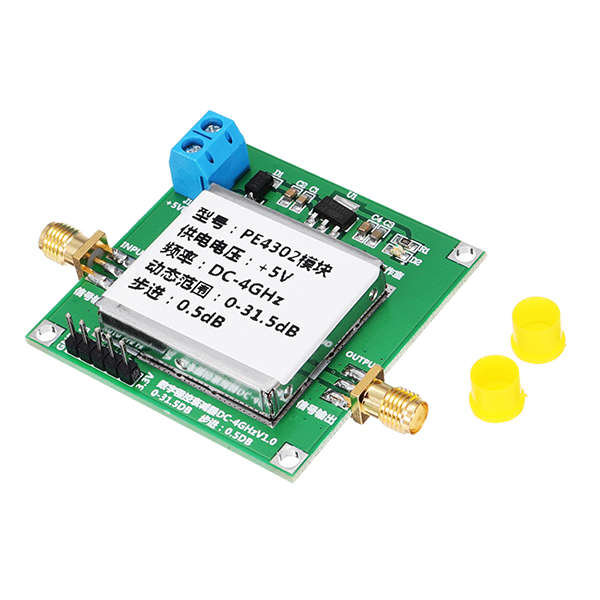

Technical indicators:

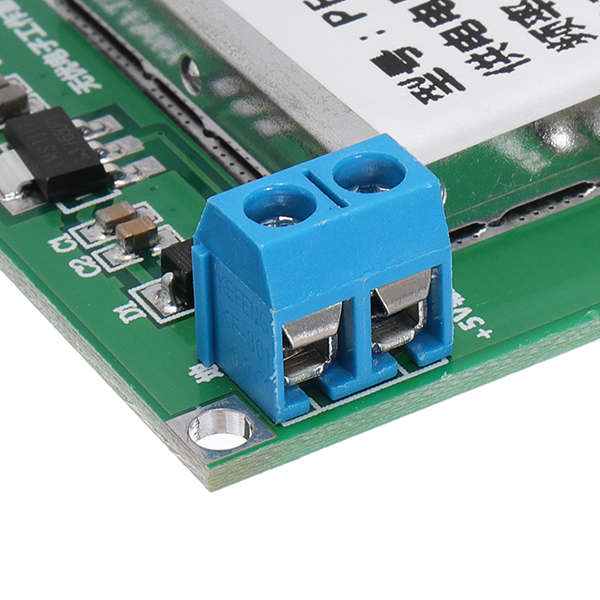

1, the supply voltage: 5V DC (typical current value 5mA)
2, programmable gain attenuation range: 0 to 31.5dB, step 0.5dB, input and output impedance: 50 ohms
3, the module supports parallel and serial mode and boot status selection function
4, bandwidth: 1MHz to 4GHz (different attenuation values are different)
5, with a metal shell shield

Differentmode configuration:

1, Serialmode configuration:DisconnectJ5 J7 J6shortedJ4
Three-wire serialmodePinare: GND DATA CLK LE 3.3V
2, ParallelC0.5-C16controlmode configuration:DisconnectJ4 J7J5 J6shorting
3, ParallelPUPcontrolmode configuration:DisconnectJ4 J5shortedJ7 J6

Package included:

1 xPE4302 Digital RF Step Attenuator Module
