PEAKMETER PM18C True RMS Multifunctional Digital Multimeter Measuring AC/DC Voltage Current Re

This multifunctional multimeter with high precision and high performance can measure AC/DC voltage, current, resistance, capacitance, frequency, duty ratio. It also can test NCV(non-contact voltage), live line, diode, transistor and continuity. With a bracket on the back, convenient to place it on the table and read the values.
ￂﾠ
Features:
Can measure AC/DC voltage, current, resistance, capacitance, frequency, duty ratio.
Also can test NCV (non-contact voltage), live line, diode, transistor and continuity.
PM18C is specially designed with temperature measurement function.
Data hold function, SEL key for some functions selection.
LCD display with backlight and lighting, convenient to use.
Powered by 4 1.5V AA batteries (Not included).
Auto power off function to save power.
Intelligent anti-burning, high sensitivity NCV sensor. PTC overload protection, double ceramic fuse protects against current overload.
The shell is made of ABS fireproof material and has a hard texture. PVC leather case, anti-fall and wear-resistant.
User-friendly support frame design, easy to use.
The pen slot design is safe and reliable.
ￂﾠ
Specifications:
Material: ABS
Display: LCD Display with Backlight, 6000 counts
Operating Environment: 600V CAT IV and 1000V CAT III
DC Voltage Range: 600mV/6V/60V/600V/1000V
DC Voltage Resolution: 0.1mV/1mV/10mV/100mV/1V
AC Voltage Range: 6V/60V/600V/750V
AC Voltage Resolution: 1mV/10mV/100mV/1V
DC Current Range: 60ￎﾼA/60mA/600mA/20.00A
DC Current Resolution: 0.01ￎﾼA/0.01mA/0.1mA/10mA
AC Current Range: 60mA/600mA/20A
AC Current Resolution: 0.01mA/0.1mA/10mA
Frequency Range: 9.999Hz/99.99Hz/999.9Hz/9.999KHz/99.99KHz/999.9KHz/9.999MHz
Frequency Resolution: 0.001Hz/0.01Hz/0.1Hz/0.001KHz/0.01KHz/0.1KHz/0.001MHz
Resistance Range: 600ￎﾩ/6kￎﾩ/60kￎﾩ/600kￎﾩ/6Mￎﾩ/60Mￎﾩ
Resistance Resolution: 0.1ￎﾩ/1ￎﾩ/10ￎﾩ/100ￎﾩ/1kￎﾩ/10kￎﾩ
Capacitance Range: 6nF/60nF/600nF/6ￎﾼF/60ￎﾼF/600ￎﾼF/6mF/100mF
Capacitance Resolution: 0.001nF/0.01nF/0.1nF/1nF/10nF/100nF/0.1ￎﾼF/0.001mF
Temperature Range: -20~1000ￂﾰC / -4~1832ￂﾰF(only for PM18C)
K Type Thermocouple Range: Max.250ￂﾰC(only for PM18C)
Working Temperature/Humidity: 0~40ￂﾰC; <80%RH
Storage Temperature/Humidity: -10~60ￂﾰC; <70%RH
Power Supply: 4 * 1.5V AA Batteries (Not included)

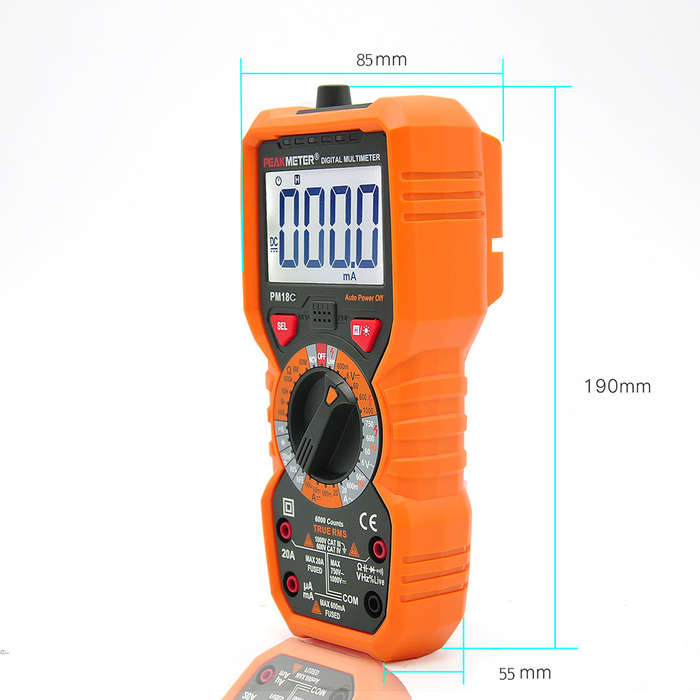

Item Size: 19 * 8.5 * 5.5cm / 7.48 * 3.35 * 2.17in
Item Weight: 328g / 11.59oz
Package Size: 21 * 13 * 6cm / 8.27 * 5.11* 2.36 in
Package Weight: 508g
ￂﾠ
Note:
Item color may show sight aberration due to different shooting light and monitor display.
ￂﾠ
Packing List:
1 * Multimeter
1 * Pair of Test Probe
1 * Pair of Temperature Probe
1 * User Manual (English)
