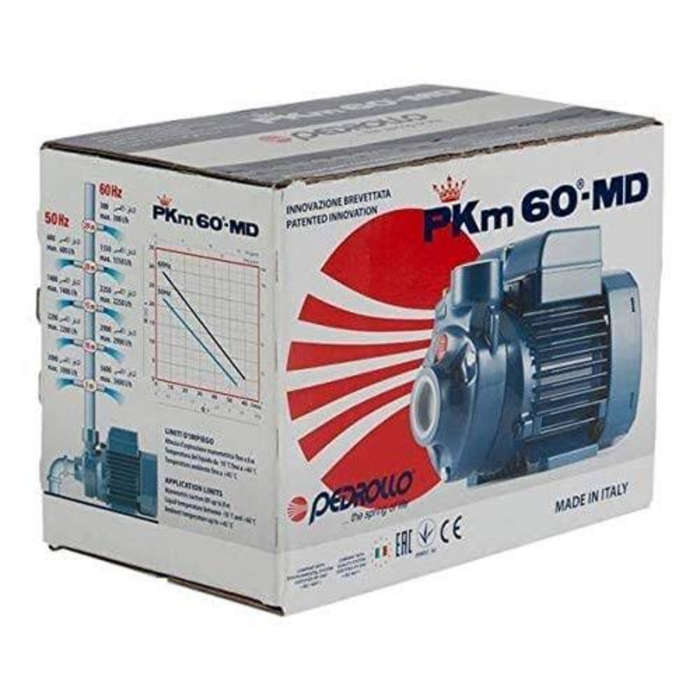

The PKM60 (QBM60 +DSK2.1) Pressure/ Booster Pump Kit - Pump With Automatic Controller is a 220V 0.37KW pump used to boost pressure in waterline.
It has an inlet size of 1 and an outlet size of 1.
Box includes pump, pressure controller.
Pump :
Operating Conditions:
Maximum fluid temperature: 40 C
Specifications:
Voltage: 220V - 240V 50Hz
Power: 0.37KW
Power: 0.5HP
Outlet Size: 25mm (1)
Inlet Size: 25mm (1)
Controller:
The PC13 automatic pressure pump controller is a 220V electronic controller to automatically start and stop a water pressure pump, it comes with built in non-return valve, dry run protection, pressure gauge and manual start or reset switch.
Specifications:
Voltage : 220V ~ 240V
Max Current : 10A
Protection Grade : IP65
Max Water Temperature : 60 C
Starting Pressure : 1.5Bar to 3Bar
Maximum Pressure : 10Bar
Inlet : Male 25mm (1 )
Outlet : Male 25mm (1 )
Includes dry-run protection
includes pressure gauge
Manual start switch (Reset)
Power LED
Pump-on LED
Failure LED
What's in the box
1 x Centrifugal Pump Kit -0.37KW - 220V- and Auto Controller
