Features:
Perform measurements of AC/DC voltage and current, resistance, diode, continuity and logic test.
LED indicator at logic test range.

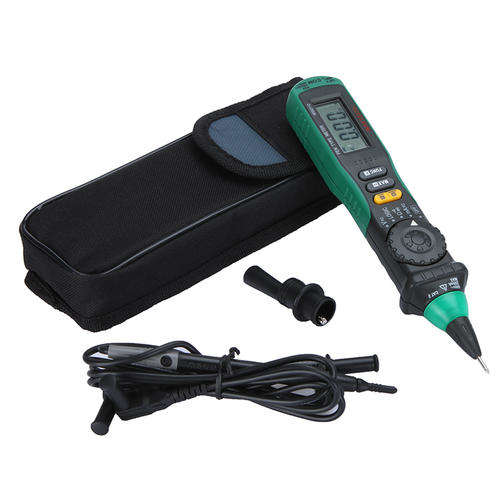

Provided with one excellent cloth bag for conveniently-carrying.
The meter has both manual range and auto range switching.
Various accessories and pen-type for one-hand operation.
Retractable tip for safe storage.
Data holding and maximum value measuring and holding.
With handsome LCD and automatic indication of functions and unit symbols.
Auto power off and low battery indication.
Built-in resettable fuse.
Full overload protection and dual insulation protection.
Over-molding rubber case, shake-proof, skid-proof and good touch-feeling.
Specifications:
| General specifications: | |||
| Operating temperature: | 0~40 Celsius Degree, 32~122 Fahrenheit (<80% RH, <10 Celsius Degree non-condensing) | ||
| Storage temperature: | -10~50 Celsius Degree, 14~122 Fahrenheit (<70% RH, battery removed) | ||
| Max. voltage between terminals & earth: | 600V DC or AC | ||
| Display: | 20mm LCD | ||
| Max. displayed value | 1999 | ||
| Polarity indication: | "-" indicates negative polarity. | ||
| Over-range indication | Display "OL" | ||
| Sampling time: | Approx. 0.4 second | ||
| Auto power off time: | 15 min. | ||
| Power supply: | 2 * 1.5V AAA battery (not included) | ||
| Multimeter size: | 20.8 * 3.8 * 2.9 cm / 8.2 * 1.5 * 1.14in | ||
| Multimeter weight: | 100g / 3.54oz | ||
| Package size: | 21 * 8 * 4cm / 8.27 * 3.15 * 1.57in | ||
| Package weight: | 276g / 9.75oz | ||
| Measurement specifications (accuracy): | |||
| DC Voltage | 200mV/2V/20V/200V/600V | ±0.7% | |
| AC Voltage | 200mV/2V/20V/200V | ±0.8% | |
| 600V | ±1.0% | ||
| Resistance | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ | ±1.0% | |
| DC Current | 20mA/200mA | ±1.5% | |
| AC Current | 20mA/200mA | ±2.0% | |
Package including:
1 * Digital Multimeter
1 * Test Lead
1 * Test Wire
1 * Test Clip
1 * Instruction Manual
