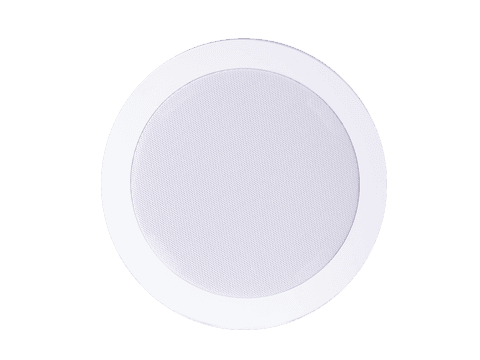

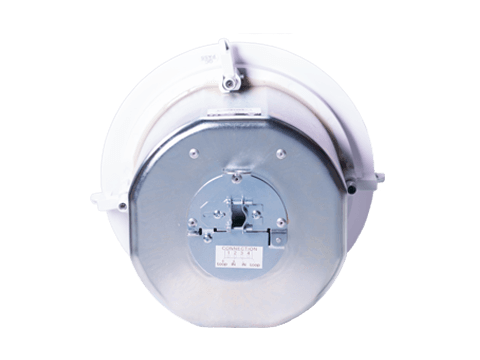

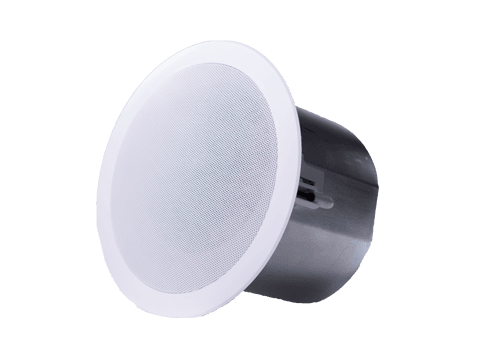

Penton CCS 6 High Power 16-Ohm Ceiling speaker with back box

The bassreflex ceiling mount loudspeakers CCS series consist of a low-frequency chassis and an additional high-frequency driver. This closed back allows for a bass reflex construction, which is reflected in the excellent reproduction of music. Atypical for 100 V speakers is the extremely high sound reproduction and the balanced sound picture, which impresses with the first hearing. Wherever powerful basses and clear heights are required to create the right atmosphere, this speaker is the first choice.  The performance can be adjusted without great effort with a selector switch below the front grille.

CCS6

Electrical

• Rated power, Watts: 60
• Driver impedance, Ohms: 16
• Effective Frequency Range, Hz (BSEN60268-5): 70-20k
• S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 88
• S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 104
• Dispersion at 1k/2k Hz, Degrees: 180/160

Environmental

• IP-Rating: n/a
• Max/Min Amb Temp: -10°C/+55°C
• Relative Humidity: 65%

Mechanical

• Dimensions, front and depth, mm: 263 x 214
• Net Weight, Kg: 3.5
• Colour (Unless Specified): White, RAL9016
• Material: Plastic Baffle ABS with UV inhibitors
• Mounting: Rotary compression clamps
• Cut-out, mm: Ø230

Applications:

• Hotels
• Bars
• Restaurants
• Retails
• Offices
• Administrations
• Train stations
