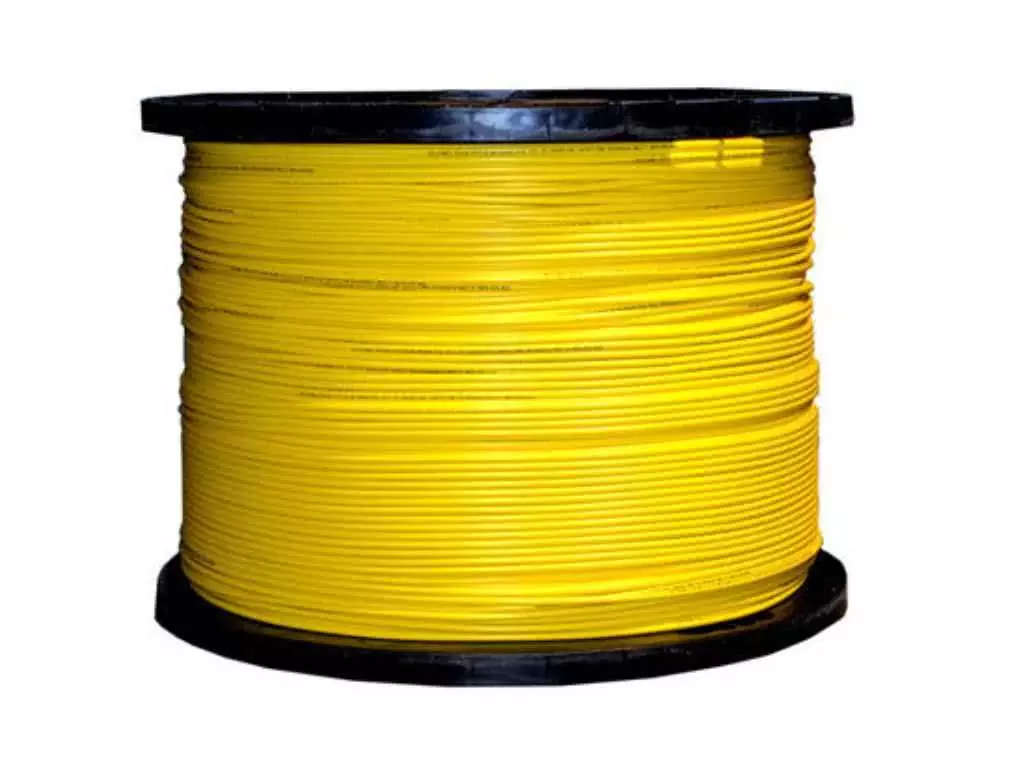

Cut to Length Per Meter | Single Mode, Single Core (Simplex) Fiber Optic Cable 3mm, 9/125um
High Quality and Cost-Effective 9/125m Single Mode Bend Insensitive Fiber Optic Cable
The 9/125m single mode bend insensitive fiber optic cable has less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.
How to Make a Fiber Optic Cable (SC to SC Cable ) Instructional Video
?v=0q_qx1n7sXY
This 9/125um (Micron) single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections, HDMI over Fiber Optic Extenders or from your Fiber Router for Fiber to the Home (FTTH).
It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
Fiber Optical Connectors for SC Ports below
/fiber-optic-sc-connector-field-installable-for-125-micron-fiber-optic-ffth-fiber-to-the-home-fttp-fiber-to-the-premises-or-hdmi-over-fiber-extenders/
/lc-upc-fiber-optic-fast-connector-field-terminated-connector/
Fiber cables can be extended by using a coupler as below
/sc-fibre-optical-coupler-cable-joiner-for-sc-fiber-cables-extension/
/duplex-fiber-optical-coupler-female-female-lc-upc-single-mode-fiber-cable-joiner/
The Tools below are commonly used with this fiber cable
/12-in-1-professional-fiber-optic-tool-kit-precision-fiber-cleaver-fiber-drop-cable-strippers-cleaning-material-visual-fault-locator-fiber-power-meter-tester/
/fiber-optic-cable-stripper-for-stripping-125-micron-fiber-optical-cables/
/fiber-optic-drop-cable-stripper-for-125-micron-fiber-for-fttp-fiber-to-the-premises-or-ftth-fiber-to-the-home-applications/
/fiber-locator-10mw-fiber-optical-light-pen-fiber-tracing-and-visual-fault-locator/
/fiber-optic-light-meter-tester-with-display-screen-can-test-fcst-and-sc-optical-fiber-cables/
| Connector Type | Any Can be Used | Polish Type | Dependent on Installer |
| Fiber Mode | 9/125m | Wavelength | 1310/1550nm |
| Insertion Loss | 0.3dB | Return Loss | 60dB |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) | Minimum Bend Radius | 10mm |
| Attenuation at 1310 nm | 0.36 dB/km | Attenuation at 1550 nm | 0.22 dB/km |
| Fiber Count | Simplex | Cable Diameter | 3.0mm |
| Cable Jacket | PVC | Polarity | A(Tx) to B(Rx) |
| Operating Temperature | -40~75°C | Storage Temperature | -45~85°C |
