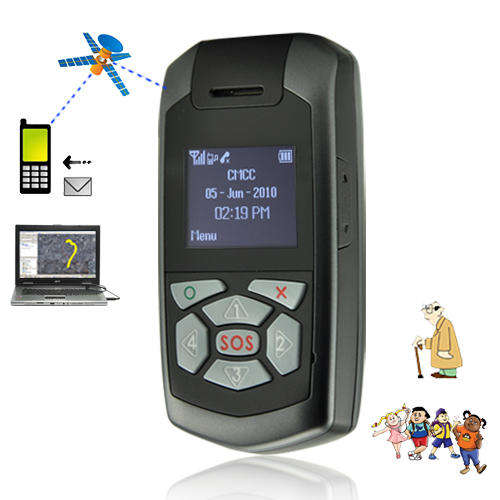

Personal GPS Tracker with OLED Screen and Two Way Calling

Personal GPS Tracker with OLED Screen and Two Way Calling

This powerful device also includes Two Way Calling to up to four pre-set phone numbers (and an SOS number) for fast, emergency communications.
For tracking of items and assets, this Personal GPS Tracker comes with a wide range of features that can be activated through SMS messages or by using the included GPS management software. With it, you can use convenient one-click commands for everything from checking the current location to reporting geo-fence boundary crossings for youngsters and valuables - plus a lot more! This Personal GPS Tracker is also constantly checking your location, so your position is always updated for maximum accuracy. With the large OLED screen, this GPS Tracker is perfect for personal use and keeping track of people. Holders of the device can check their own longitude and latitude coordinates on the screen, as well as view SMS messages, set an alarm, and much more. Also included is a handy two way calling feature (complete with built-in microphone and speaker) so users can use this GPS tracker like a cell phone and speed dial up to 4 pre-set numbers with just a push of a button for excellent emergency communications.

Manufacturer Specifications

• Primary Function: Personal GPS Tracker with OLED Screen and Two Way Calling
• Display: 1.3" OLED Screen (128*96 pixel resolution)
• Frequency Quad-Band: 850/900/1800/1900MHz
• SIM Card Compatibility: 2G, 2.5G, 2.75G
• Two Way Calling: Yes
• Speed Dialing: Yes
• Number of Contacts: 4 speed-dial contacts + 1 SOS contact
• Compliant to GSM phase 2/2+
  -Class 4 (2W @ 850/900MHz)
  -Class 1 (1W @ 1800/1900MHz)
• GPRS GPRS multi-slot class 12
• GPRS mobile station class B
• RMS Phase Error = ~5deg
• Max Out RF power ~33.0dBm
• Dynamic Input Range -15 ~ -102 dBm
• Receiving Delicacy Class II RBER <= 2%(-102dBm)
• Stability Of Frequency: > 2.5ppm
• Max Frequency Error ~0.1ppm
• GPS Specifications:
• GPS Chipset: SiRF Star III
• Sensitivity
  Autonomous Acquisition: -142 dBm
  Hot start: -155 dBm
  Tracking: -156 dBm
Channels: 20 channel all-in-view tracking
• TFF (Open Sky)
  Cold start: 44s
  Warm start: <38s
  Hot start: <2s
• Air Interface Protocol
  Transmit Protocol TCP,UDP,SMS
  Scheduled Timing Report
  Geo-Fence
  Low Power Alarm
  Power On Report
  Power Down Alarm Report
  Falling Alarm
• Standby Time
  Without Report: 120 to 150 Hours
  5 minutes report: 50 to 60 Hours
  10 minutes report: 70 to 80 Hours
• Power Source: USB (5V)
• Battery Specifications: Li-Polymer 850 mAh , 3.7 V
• Dimensions (mm): 87 x 44.5 x 17

Product Notes

• 1.3 inch OLED screen
• Two way calling and SOS button - great for emergency communications
• Before use, connect to computer and set up using the provided management tools
• This Personal GPS Tracker runs on a SiRF Star III chipset to make it a highly accurate and reliable GPS device
• Low power consumption, long standby time
• Assisted GPS Ready
• Quad band GSM for worldwide connectivity

Package Contents

• Personal GPS Tracker, CD with Software/User Manual, Battery, Earphone, USB Cable, Power Adapter

Frequently Asked Questions

• How do I set up this Heavy Duty GPS tracker? What is the COM port/baud rate/password?
  First you need to connect it to your computer and use the included software to add a phone number to send the GPS alerts to. The COM port can be found by accessing the device manager on your machine, then going to ports, then finding what COM the GPS Tracker is. Using the same software, you can then access every function of the GPS tracker!
• How do I make sense of the information this GPS Tracker provides?
  Use the user manual or quick-start guide on the CD.
• The GPS Tracker doesn't work. What's wrong?
  A number of things could cause this to happen:
  1) Make sure the SIM card is compatible (only 2G, 2.5G, 2.75G SIM cards work)
  2) Make sure there is money left on the SIM card and that it has not expired
  3) Make sure there is no PIN code associated with the SIM card
  4) Make sure roaming is enabled on your SIM account if you are in a different country
