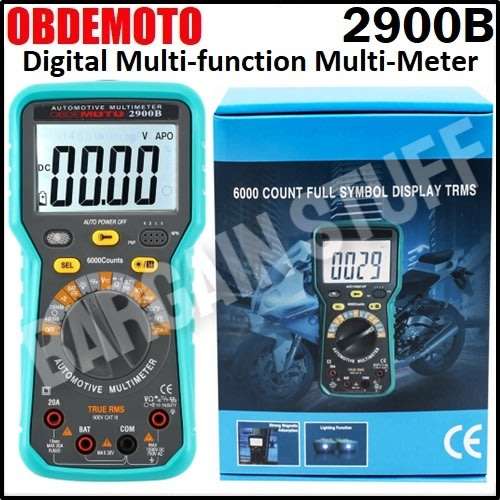

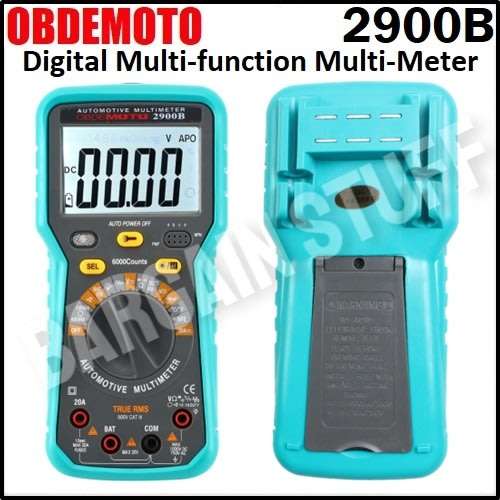

OBDEMoto 2900B 6000 counts Automotive Digital Multi-meter with Rotational Speed Measurement

The OBDEMOTO 2900B 6000 counts digital automotive multi-meter is well designed with convenient operation, accurate reading, true RPM, clear full symbol LCD display and complete functions. The meter not only uses the latest software design, automatic calibration, high precision, good stability and new protective sleeve, but also has magnetic suction function, large screen LCD, backlight function and flashlight function, which is suitable for dark light environment. "V" jack input is internally connected with PTC thermal-sensitive elements, which can protect the core parts of the meter sufficiently and greatly improve the safety and service life of the product. The meter can measure DC voltage/current, AC voltage/current, resistance, capacitance, frequency, temperature, speed, closing angle, lamp test, positive and negative pulse, crystal diode, triode parameters and circuit on and off.
The product is suitable for vehicle maintenance and debugging, and is your ideal measuring tool.

Features:

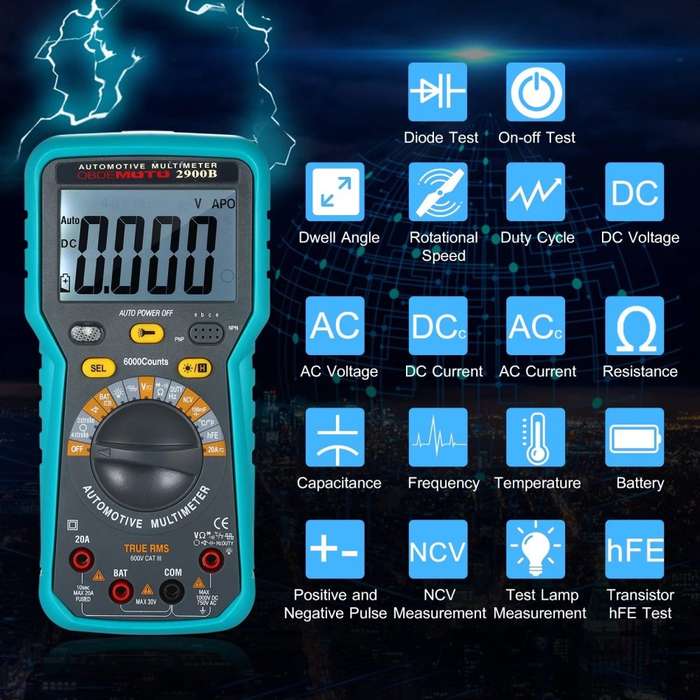

• Multifunction: Can accurately measure AC/DC voltage, AC/DC current, dwell angle, rotational speed, resistance, capacitance, temperature, frequency, diode, hFE, Duty Cycle, continuity, lamp, battery, positive and negative pulse.

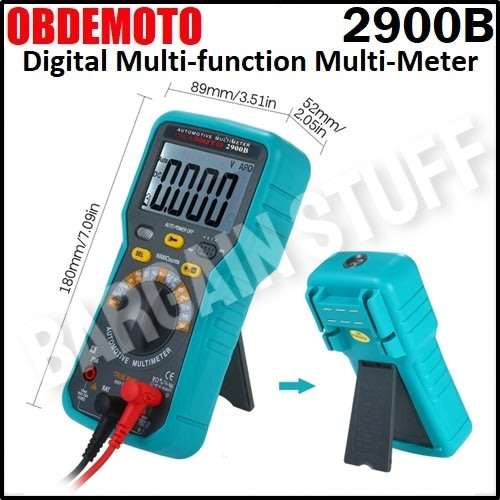

• Portable Design: There is a back bracket and magnet for supporting multi-meter and also can collect test probe for your convenience.

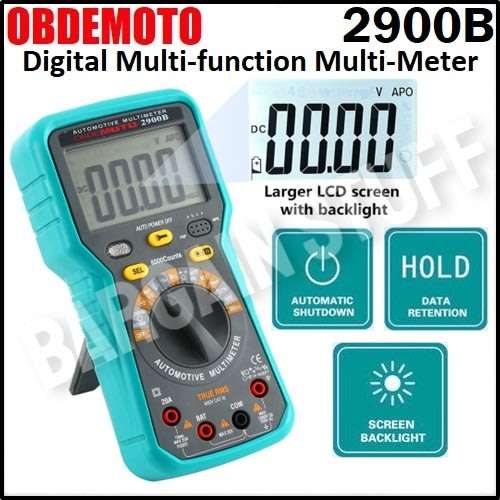

• Easy to Use & Clear to Read: With large LCD Backlight display and flashlight, convenient to use and read data in the dark.
• More advantages: Full symbol display, Full automatic operation, Auto power off, function select, True RMS, data hold, over range indication, full range overload protection and low voltage display, test lamp measurement, battery measurement, positive and negative pulse measurement.
• Widely use: A perfect tool for the laboratory, factory and power plant.
• Updating: 2900B is the updated version from 2900A, definitely better than manual 2900A.

Top Feature:

• Full Symbol Display: Yes.
• Full Automatic: Yes, better than 2900A which is manual one.
• RPM: 2 Strokes, 4 Strokes, the same function as MST-1000
• True RMS: Yes.

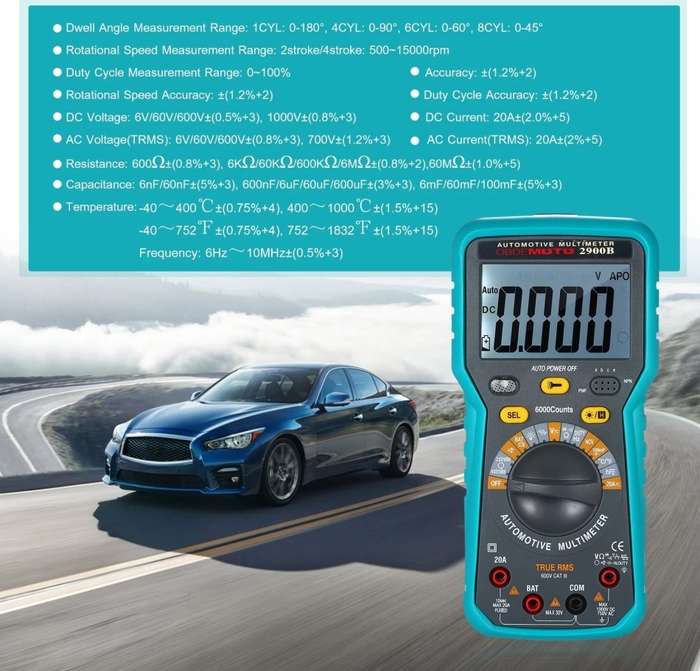

Specifications:

• Model: OBDEMOTO 2900B.

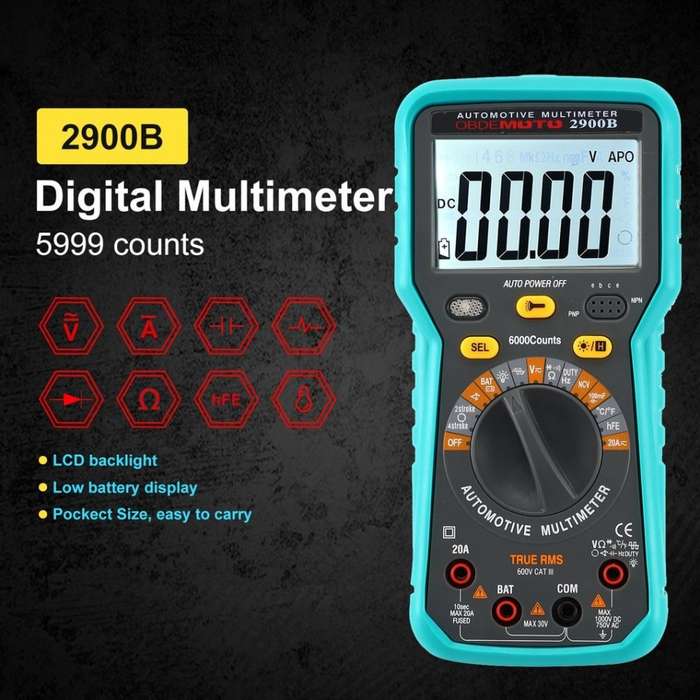

• Display: 5999 Counts.
• Color: Gray + Blue.
• Dwell angle:
• 1CYL: 0-180.0°, 4CYL: 0-90.0°, 5CYL: 0-72.0°, 6CYL: 0-60.0°, 8CYL: 0-45.0°
• Accuracy: ±(1.2%+2)
• Rotational speed:
• 1CYL/4CYL/5CYL/6CYL/8CYL:500~10000Turn/min±(1.2%+2)
• DC Voltage:6V/60V/600V±(0.5%+3), 1000V±(0.8%+3)
• AC Voltage:6V/60V/600V±(0.8%+3), 700V±(1.2%+3)
• DC Current:6mA/60mA/600mA±(1.2%+3), 20A±(2.0%+5)
• AC Current:6mA/60mA/600mA±(1.2%+3), 20A±(2.5%+5)
• Resistance:600±(0.8%+3),6K/60K/600K/6M±(0.8%+2), 60M±(1.0%+5)
• Capacitance:6nF/60nF±(5%+3),600nF/6uF/60uF/600uF±(3.0%+3), 6mF/60mF/100mF±(5.0%+3)
• Temperature:
• -40°～400°±(0.75%+4),400°～1000°±(1.5%+15)
• -40°～752°±(0.75%+4),752°～1832°±(1.5%+15)
• Frequency:6Hz～10MHz±(0.5%+3)
• Diode Test: Yes.
• hFE Test: Yes.
• Continuity Testing: Yes.
• Duty cycle: Yes.
• Backlight: Yes.
• Auto Power off: Yes.
• Data Hold: Yes.
• Range Select: Yes.
• Over range indication: Yes.
• Full Symbol Display: Yes.
• Full Automatic: Yes.
• RPM: 2 Strokes, 4 Strokes, the same function as MST-1000
• True RMS: Yes.
• Flashlight: Yes.
• Power: 9V Battery 6F22 (not included)

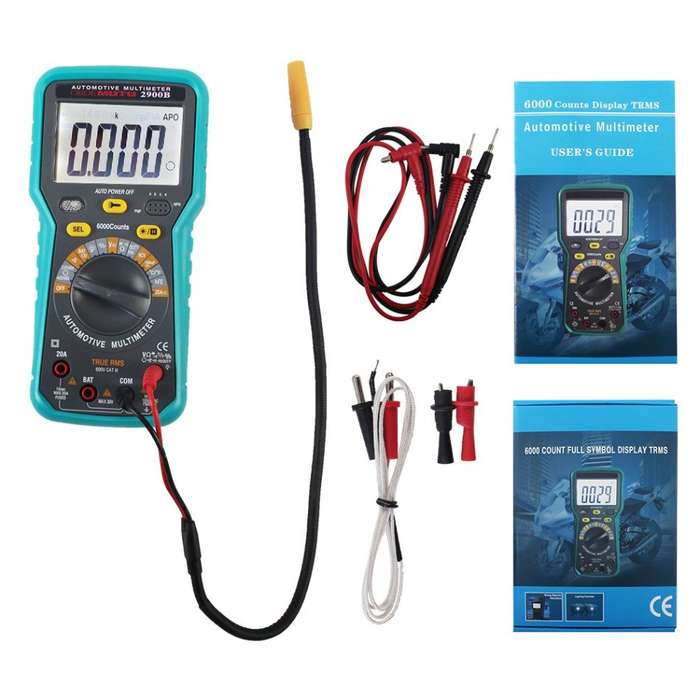

Package list:

• 1 x Digital Multi-meter.
• 2 x Test Pen Cable.
• 2 x Alligator clip.
• 1 x Temperature Test Cable.
• 1 x Rotational Speed Test Cable.
• 1 x User Manual.
