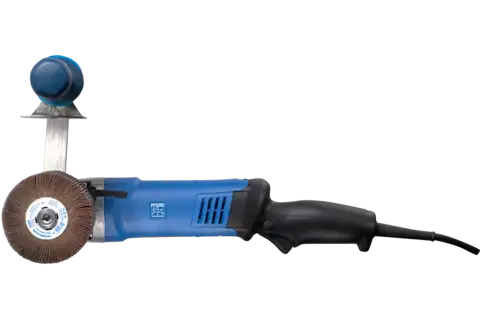

PFERD - Burnishing machines ESER 17/75 - 83300260

Electric burnishing machine ESER 17/75 230 volts 7,500 RPM/1,700 watts

Technical information
Electric burnishing machine ESER 17/75 230 volts 7,500 RPM/1,700 watts

Dia. hole, max.
125 mm
Dia. tool mounting
19 mm
Height
207 mm
Length
415 mm
Net weight
3.065 kg
Power consumption
1700 watts
Power output
1000 watts
Rotational speed range, from
2700 RPM
Rotational speed range, to
7500 RPM
Tool mounting, width
100
Voltage, from
230 volts
WEEE reg. no.
55553582
Width
77 mm
Packaging unit
1 piece

Description

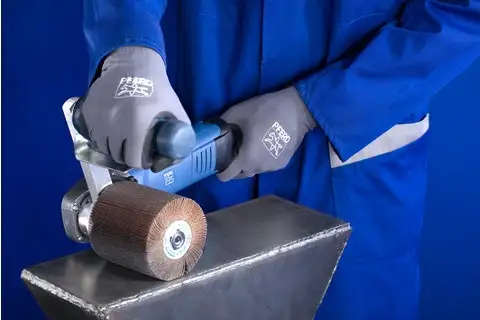

The burnishing machine with spindle lock pin comes with stepless rotational speed regulation. It has two keyways for increased power transmission on drum tools, a drive spindle with CD-R mounting and an M14 drive spindle for mounting drum tools with female thread.

Drive with 230 V and EU plug.
Advantages

Digital electronics for constant rotational speed.
Overload protection.
Smooth start-up to protect people, tools and the drive.
Spindle lock pin.

Recommendations for use

Drive spindle with CD-R mounting for felt discs diameter 50 mm to protect the tool.
Suitable for European markets.
