PFERD - Pipe belt grinder EBER 17/75 R - 83200250

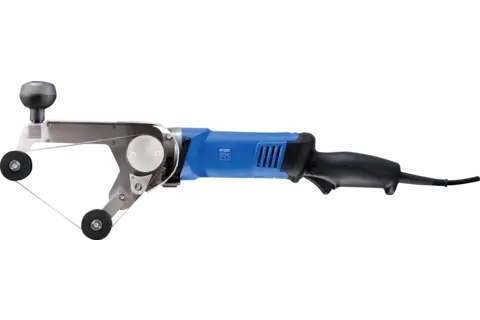

Electric pipe belt grinder EBER 17/75 R 230 volts/22.8 m/s belt length: 610-820 mm x width 12-40 mm

Technical information
Electric pipe belt grinder EBER 17/75 R 230 volts/22.8 m/s belt length: 610-820 mm x width 12-40 mm

Belt speed, from
8.2 m/s
Belt speed, to
22.8 m/s
Height
190 mm
Length
595 mm
Net weight
4.027 kg
Power consumption
1700 watts
Power output
1000 watts
Suitable belt length [mm]
610820
Suitable belt width [mm]
1240
Version
Without transport case
Voltage, from
230 volts
WEEE reg. no.
55553582
Width
77 mm
Packaging unit
1 piece

Description

Electric grinders are general all-rounders. They offer a high power output in relation to their size and weight. They are particularly suitable for use with grinding tools that require a constant rotational speed. Electric grinders can be used for nearly every application. They are used in many industries in different processes. The stepless electronic rotational speed control allows the use of various types of tools on one single tool drive.

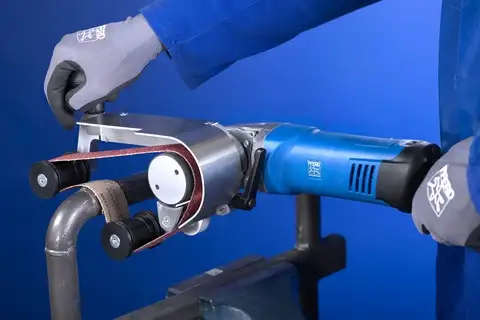

The electric pipe belt grinder with stepless rotational speed regulation has an adjustable telescopic arm for using different belt lengths. The lockable guide roller enables greater contact pressure or a large surface contact angle. The fixed side plates protect the workpiece.

Drive with 230 V and EU plug.
Advantages

The pipe belt grinder with adjustable belt guidance roller can be adapted to different pipe diameters.
Digital electronics for constant rotational speed.
Overload protection.
Smooth start-up to protect people, tools and the drive.
Spindle lock pin.

Recommendations for use

Suitable for European markets.

Contents

4 m power cable, 1 key, 2 35 mm rolls and 2 40 mm rolls.
