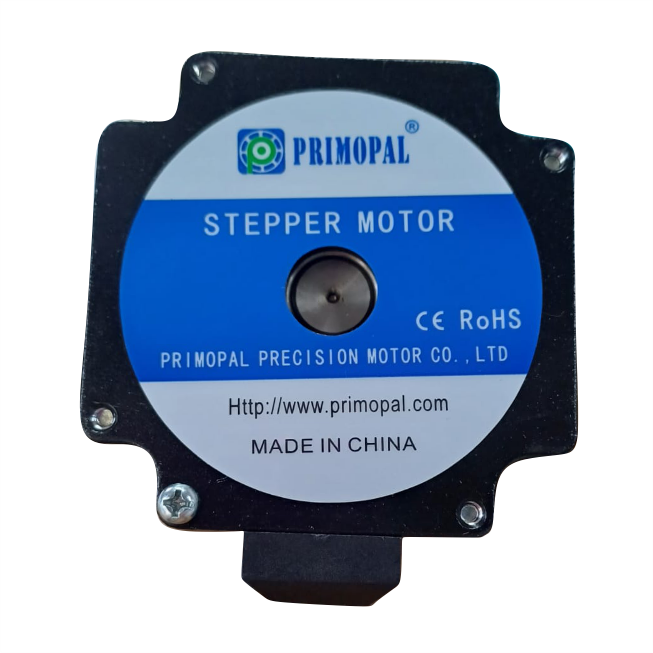

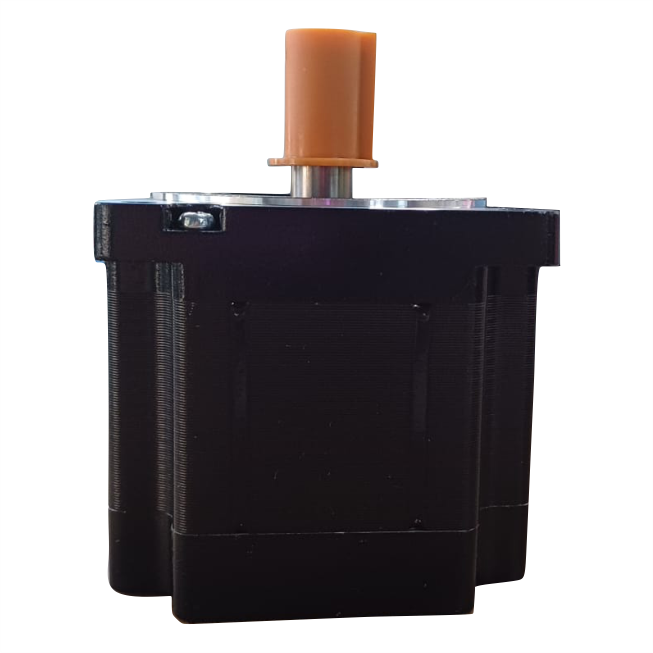

PHB86S78-802 Nema 34 1.8" Stepper Motor 78mm

1 available / new
Indicative market price: R1,099.65
Only 1 left – grab it before it’s gone!
R1,099.65
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Returns
Warranty Type: Manufacturer https://acrobat.adobe.com/id/urn:aaid:sc:EU:60f589d9-954e-4367-b1cd-895555c7a9d4 Money-Back Guarantee: 7 Days: Money back in 7 days and replacement
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
MOT-0020
Bob Shop ID
642548825

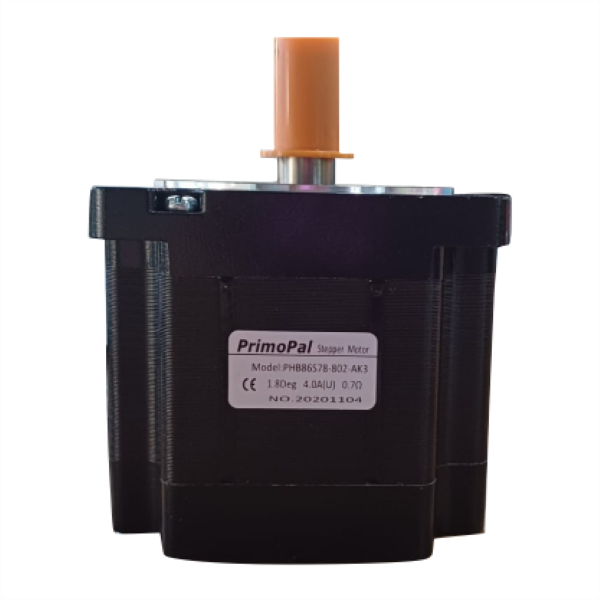

PHB86S78-802

Key Features:
  • High Torque
  • Smooth Movement
  • High Accuracy


Features:
  • Step Angle: 1.8 Degrees
  • Step Angle Accuracy: +-5% (full step, no load)
  • Resistance Accuracy: +-10%
  • Inductance Accuracy: +-20%
  • Temperature Rise: 80 Degree C Max.(rated current, 2 phase on)
  • Ambient Temperature: -20 Degree Celsius ~ +50 Degree Celsius
  • Insulation Resistance: 100 MOHM Min., 500VDC
  • Dielectric Strength: 500 VAC for one minute
  • Shaft Radial Play: 0.02 Max. (450 g-load)
  • Shaft Axial Play: 0.08 Max. (450 g-load)


Specifications:
  • Current (A/Ø): 4.0
  • Resistance (OHM/Ø): 0.7
  • Inductance (mH/Ø): 3.0
  • Holding Torque (N.cm): 300
  • Unipolar (# of Leads) : Uni(8)
  • Detent Torque (N.cm): 6.5
  • Rotor Inertia (kg.cm²): 1.05
  • Weight (kg): 2.5
  • Length (mm): 78
