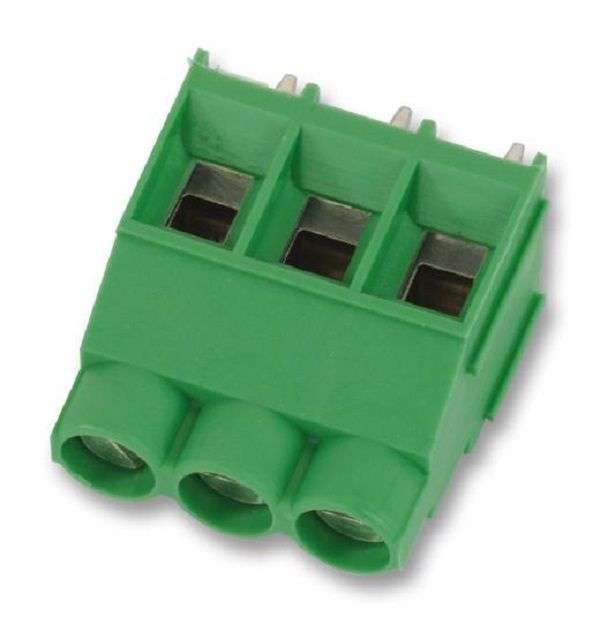

Phoenix Contact (1714968) Wire-To-Board Terminal Block, 6.35 mm

Wire-To-Board Terminal Block, 6.35 mm, 3 Ways, 24 AWG, 10 AWG, 6 mm², ScrewProduct OverviewThe 1714968 is a 3-position green PCB Terminal Block with tin-plated soldercontacts, a polyamide insulator and the M3 screw connection. This MKDS 5/ 3-6,35terminal block has fully developed contact geometries and surfaces. It accepts24 to 10AWG wire range.Space-saving and safe8mm Stripping lengthA4 Internal cylindrical gageUL94V-0 Flammability ratingApplicationsIndustrialProduct InformationPitch Spacing: 6.35mmWire Size AWG Min: 24AWGWire Size AWG Max: 10AWGConductor Area CSA: 6mm²Wire Connection Method: ScrewRated Current: 32ARated Voltage: 630VBlock Orientation: Through Hole Right AngleProduct Range: MKDS
