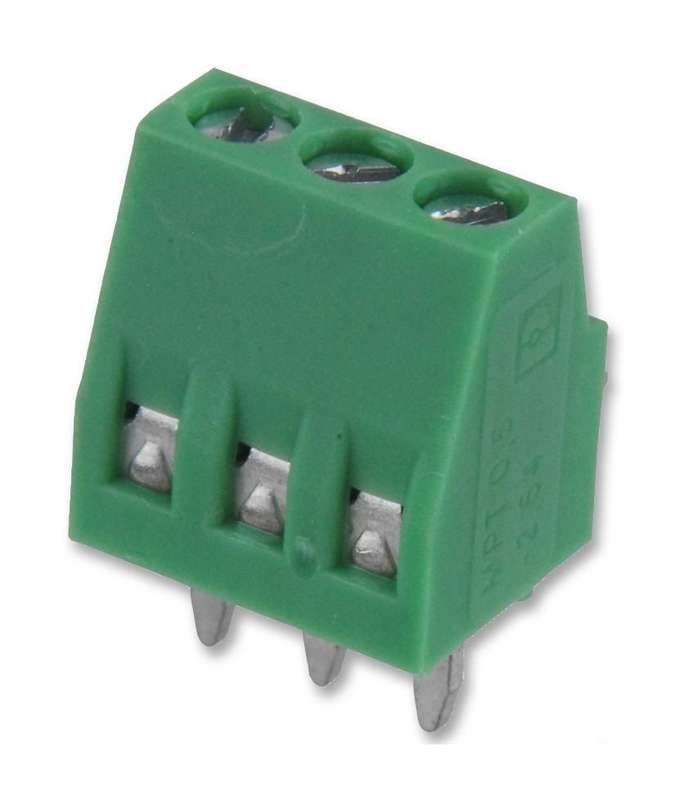

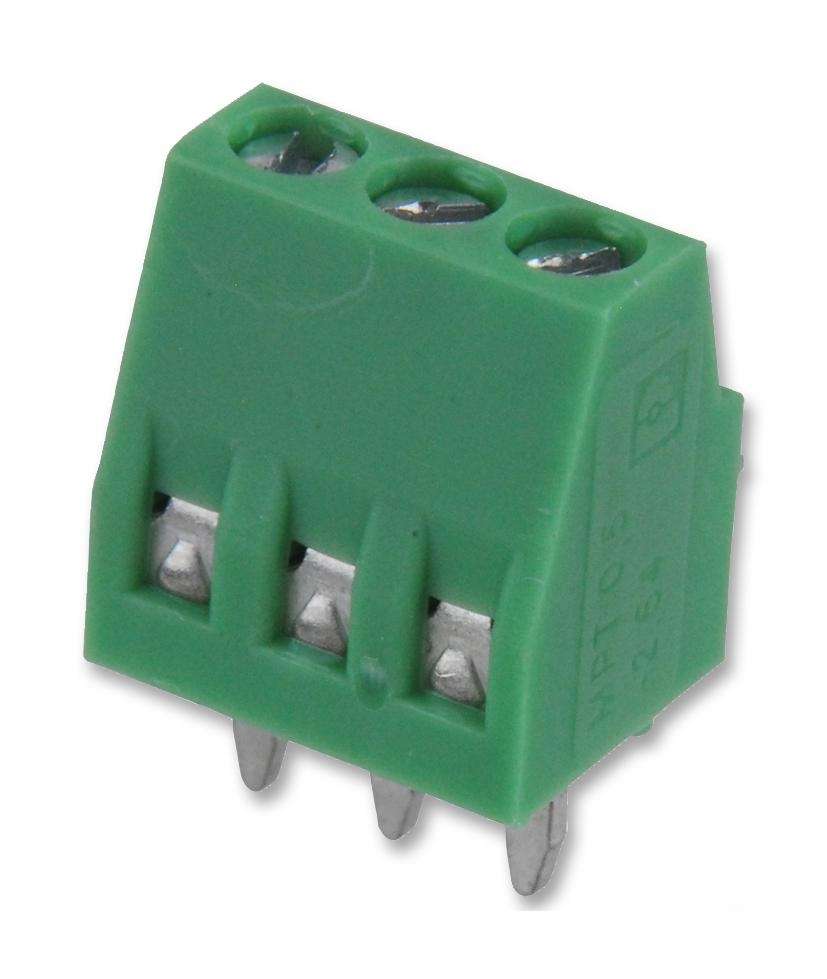

Phoenix Contact (1725669) Wire-To-Board Terminal Block, 2.54 mm, 3 Ways

Wire-To-Board Terminal Block, 2.54 mm, 3 Ways, 26 AWG, 20 AWG, 0.5 mm², ScrewProduct OverviewThe 1725669 is a 3-way Wire-to-board PCB Terminal Block made of PA insulationideal for use in miniature modules with high contact density. The MPT 0,5/3-2,54 features screw connection with tension sleeve and wave soldering. It is aMICRO PCB terminal block with 2.54mm IC pitch.Green colorSingle-row type with horizontal connection directionUL94V-0 Flammability ratingApplicationsIndustrialProduct InformationPitch Spacing: 2.54mmNo. of Positions: 3WaysWire Size AWG Min: 26AWGWire Size AWG Max: 20AWGConductor Area CSA: 0.5mm²Wire Connection Method: ScrewRated Current: 6ARated Voltage: 125VBlock Orientation: Through Hole Right AngleProduct Range: MPT
