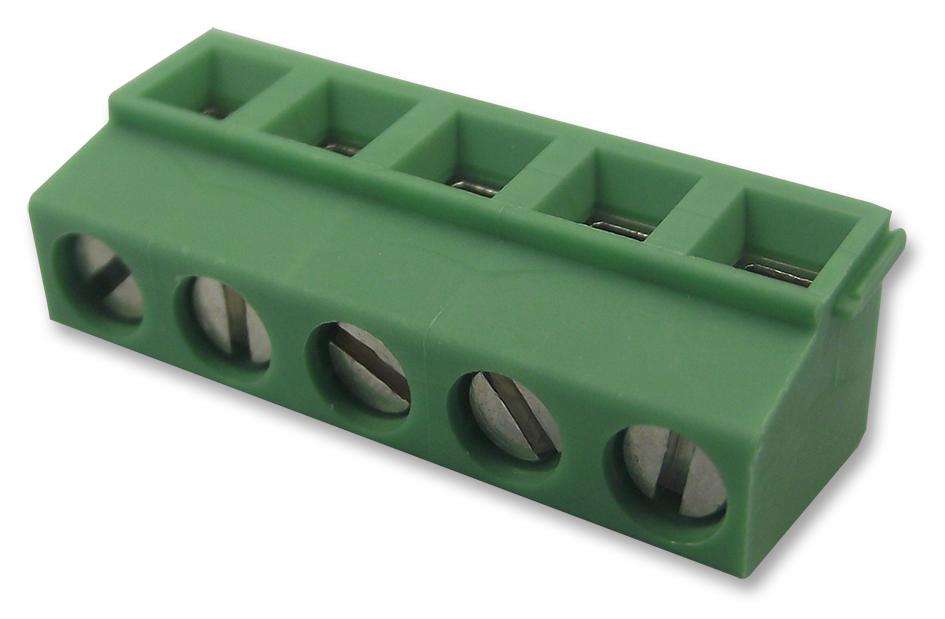

Phoenix Contact (1729157) Wire-To-Board Terminal Block, 5.08 mm, 5 Ways

Wire-To-Board Terminal Block, 5.08 mm, 5 Ways, 26 AWG, 16 AWG, 1.5 mm², ScrewProduct OverviewThe 1729157 is a 5-position green PCB Terminal Block with tin-plated soldercontacts, a polyamide insulator and the M3 screw connection. This MKDSN 1,5/5-5,08 terminal block has fully developed contact geometries and surfaces. Ithas compact housing dimensions and low design height. It accepts 26 to 16AWGwire range.Space-saving and safeSingle-row type with horizontal connection direction6mm Stripping lengthUL94V-0 Flammability ratingApplicationsIndustrialProduct InformationPitch Spacing: 5.08mmNo. of Positions: 5WaysWire Size AWG Min: 26AWGWire Size AWG Max: 16AWGConductor Area CSA: 1.5mm²Wire Connection Method: ScrewRated Current: 13.5ARated Voltage: 250VBlock Orientation: Through Hole Right AngleProduct Range: MKDSN
