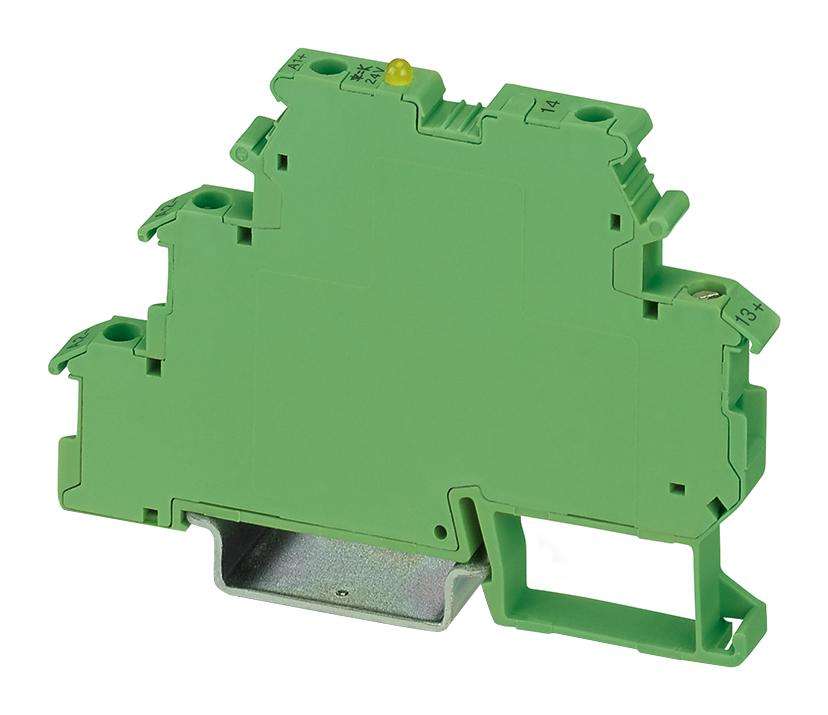

Phoenix Contact (2941374) Solid State Relay, 3 A, 30 VDC, DIN Rail, Screw

Product InformationContact Configuration: -Load Current: 3AOperating Voltage Max: 30VDCRelay Mounting: DIN RailRelay Terminals: ScrewSwitching Mode: -Operating Voltage Min: 3VDCControl Voltage Min: -Control Voltage Max: 24VDCProduct Range: DEK-O*Product OverviewThe 2941374 is a power solid-state relay Terminal Block with screw connection.The interface DEK terminals offer complete interface functions in terminal blockhousings with a width of only 6.2mm (0.244-inch). This powerful interface do notonly shares the design of the terminal block but also its highly convenientapplication due to the use of standard terminal accessories. The DEK familyoffers the suitable solution for every industrial voltage value for signal inputas well as output. High switching power is a standard feature of DEKOVoptocoupler terminals. Integrated LEDs clearly signal the switching state ofelectronic terminal block and thus create a very good overview of the couplinglevel and the system. It is suitable for applications with high switchingfrequency where electro-mechanical relays rapidly reach the end of their servicelife you can now apply the wear-resistant power optocoupler DEK-OV-24DC/24DC/3terminal block.EB-DIK insertion bridgesActuator versionLabeling and mounting with user-friendly modular terminal blocksIntegrated output protective circuitStatus indicatorIntegrated input circuitZero voltage switch at AC outputProtection against polarity reversal and surge protectionYellow LED operating voltage display2.5kVAC at 50Hz (1 minute) Input/output test voltage7mA Typical input current40µs Typical response time200µs Typical turn-off time0.6W Power dissipation for nominal conditionUp to 2.5kVRMS electrical isolation between input and outputApplicationsIndustrial
