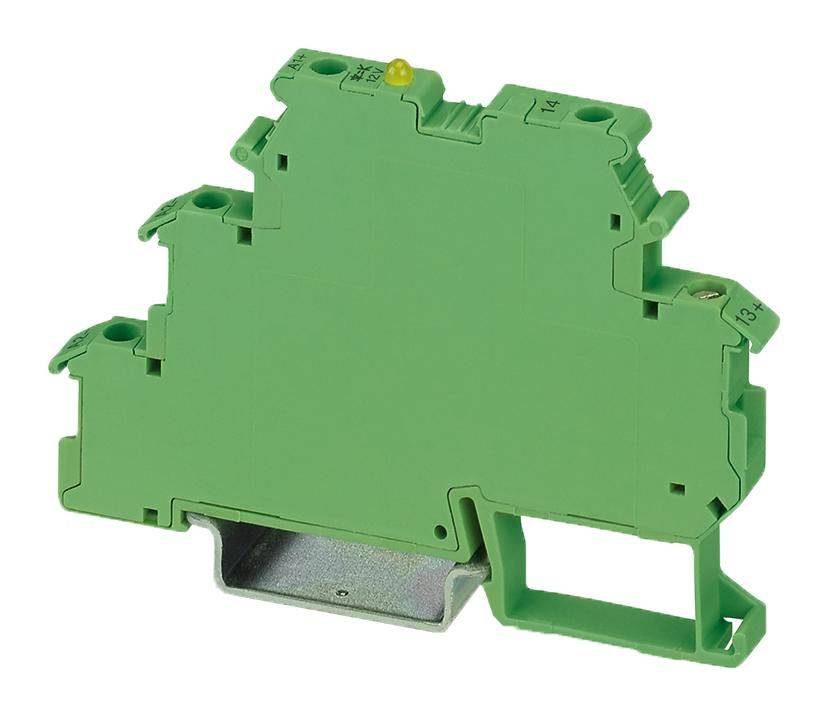

Phoenix Contact (2941387) Solid State Relay, 3 A, 30 VDC, DIN Rail, Screw

Product InformationContact Configuration: -Load Current: 3AOperating Voltage Max: 30VDCRelay Mounting: DIN RailRelay Terminals: ScrewSwitching Mode: -Operating Voltage Min: 3VDCControl Voltage Min: -Control Voltage Max: 12VDCProduct Range: DEK-O*Product OverviewThe 2941387 is a power solid-state relay Terminal Block offers completeinterface functions in terminal block housings with a width of only 6.2mm. ThisDEK-OV-12DC/24DC/3 powerful interface does not only share the design of terminalblock but also its highly convenient application due to the use of standardterminal accessories. The DEK family offers the suitable solution for everyindustrial voltage value for signal input as well as output. For applicationswith high switching frequency where electro-mechanical relay rapidly reaches theend of its service life you can now apply the wear-resistant power optocouplerDEK-OV terminal block. Integrated LEDs clearly signal the switching state ofelectronic terminal block and thus create a very good overview of the couplinglevel and the system. Integrated protection circuits such as free-wheelingdiodes, diodes against polarity reversal and surge voltage elements protectcoupling components and thus provide optimum system availability.High switching powerStatus display per LEDIntegrated protective circuit at the outputZero voltage switch at AC outputIntegrated output protective circuitIntegrated input circuit2.5kV Galvanic isolation between input and outputApplicationsIndustrial
