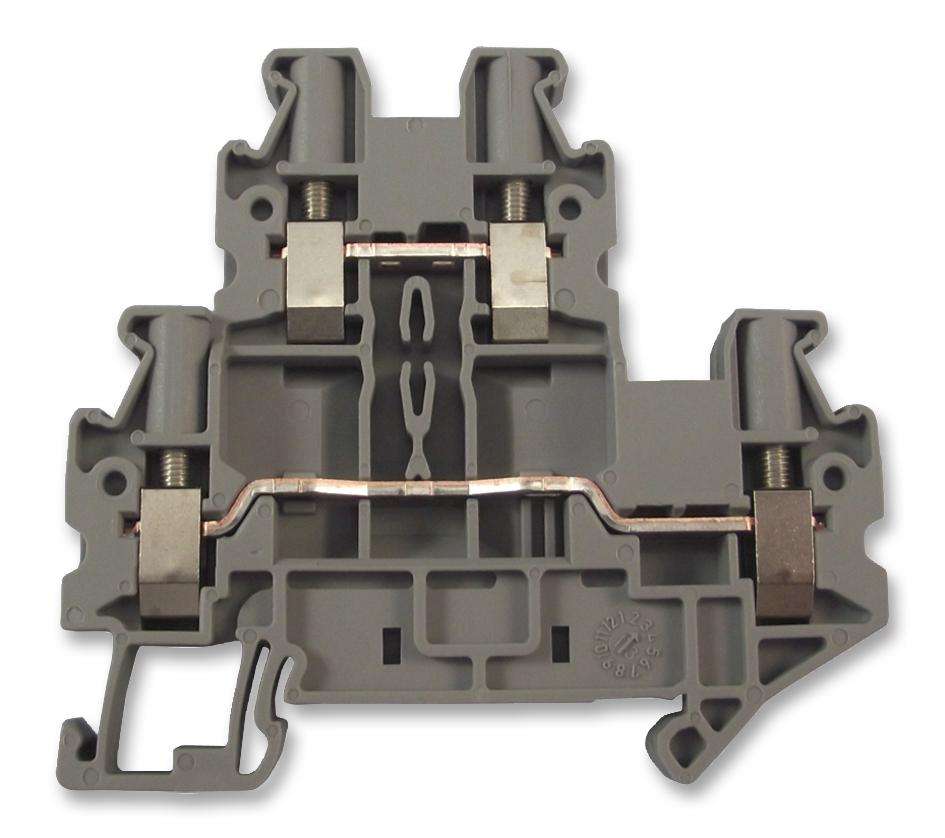

Phoenix Contact (3044636) DIN Rail Mount Terminal Block, 4 Ways, 26 AWG

DIN Rail Mount Terminal Block, 4 Ways, 26 AWG, 12 AWG, 4 mm², Screw, 24 AProduct OverviewThe 3044636 is a 4-position double-level DIN rail Terminal Block with PAinsulator and grey color. 0.14 to 4mm² cross-section, 26 to 12AWG wire size and5.2mm width. NS 35/7, 5, NS 35/15 mounting type and screw connection method. Incase of a 4mm² conductor cross-section, the maximum load current must not beexceeded by the total current of all connected conductors. Since there are twofunction shafts per level, all potential distribution tasks can be implementedquickly. As an option, the levels can be connected using the FBS?PV UT verticalbridge. For a clear overview, each terminal point supports large-surfacelabelling. For example, two separate potentials can by routed side by side withthe help of bridging between non-adjacent terminal blocks.UL94V-0 Flammability rating6kV Rated surge voltage28A CurrentHalf-sine shock formApplicationsIndustrialProduct InformationWire Size AWG Min: 26AWGWire Size AWG Max: 12AWGConductor Area CSA: 4mm²Wire Connection Method: ScrewRated Current: 24ARated Voltage: 500VNo. of Levels: 2Product Range: UTTB
