Phoenix Contact (3046362) DIN Rail Mount Terminal Block, 2 Ways, 26 AWG

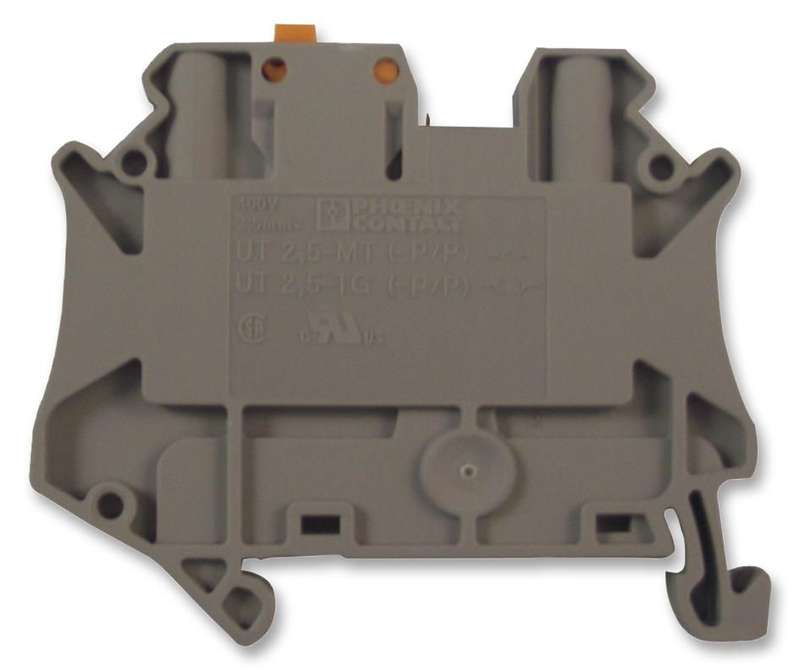

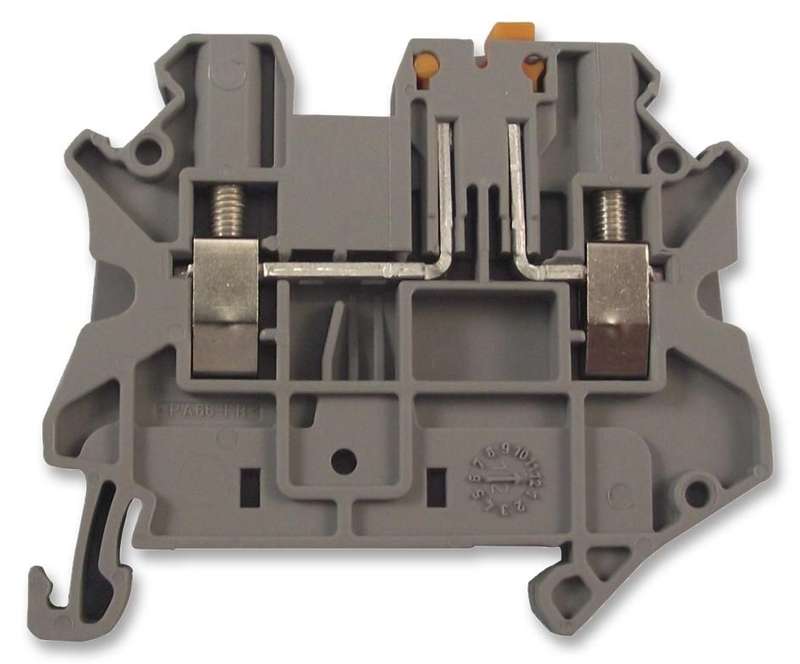

DIN Rail Mount Terminal Block, 2 Ways, 26 AWG, 12 AWG, 4 mm², Screw, 20 AProduct OverviewThe 3046362 is a 2-position 1-level grey Knife Disconnect Terminal Block with apolyamide insulator, the M3 screw connection and the NS 35/7,5, NS 35/15mounting. This UT 2,5-MT terminal block has convenient separation of circuitsusing lever-type disconnect knife, isolating plug or rotary contact. It hasclear identification of the disconnect point with colour marking. Individualassembly with disconnect element, fuse plug, component plug and feed-throughconnector. It accepts 26 to 12AWG wire range.Double bridge shaft enables individual potential distribution and supplyHalf-sine shock form9mm Stripping lengthUL94V-0 Flammability ratingApplicationsIndustrial, Automation & Process ControlProduct InformationWire Size AWG Min: 26AWGWire Size AWG Max: 12AWGConductor Area CSA: 4mm²Wire Connection Method: ScrewRated Current: 20ARated Voltage: 400VNo. of Levels: 1Product Range: UT
