Phoenix Contact (GMKDS 3/ 2-7,62) Wire-To-Board Terminal Block, 7.62 mm,

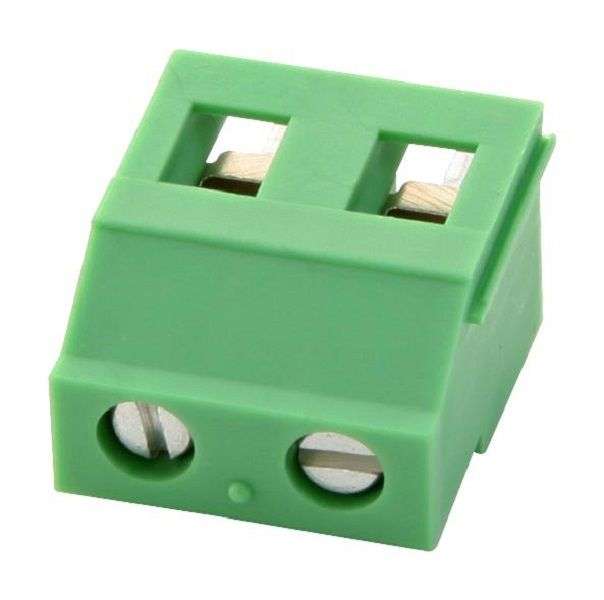

Wire-To-Board Terminal Block, 7.62 mm, 2 Ways, 24 AWG, 12 AWG, 4 mm², ScrewProduct OverviewThe GMKDS 3/ 2-7,62 is a 2-position green PCB Terminal Block with tin-platedcontacts, a polyamide insulator and the M3 screw connection. This 1731721terminal block can be consistently connected in series with the correspondingstandard models of the MKDS 3 range. It accepts 24 to 12AWG wire range.8mm Stripping lengthUL94V-0 Flammability ratingApplicationsIndustrialProduct InformationPitch Spacing: 7.62mmWire Size AWG Min: 24AWGWire Size AWG Max: 12AWGConductor Area CSA: 4mm²Wire Connection Method: ScrewRated Current: 24ARated Voltage: 500VBlock Orientation: Through Hole Right AngleProduct Range: GMKDS
