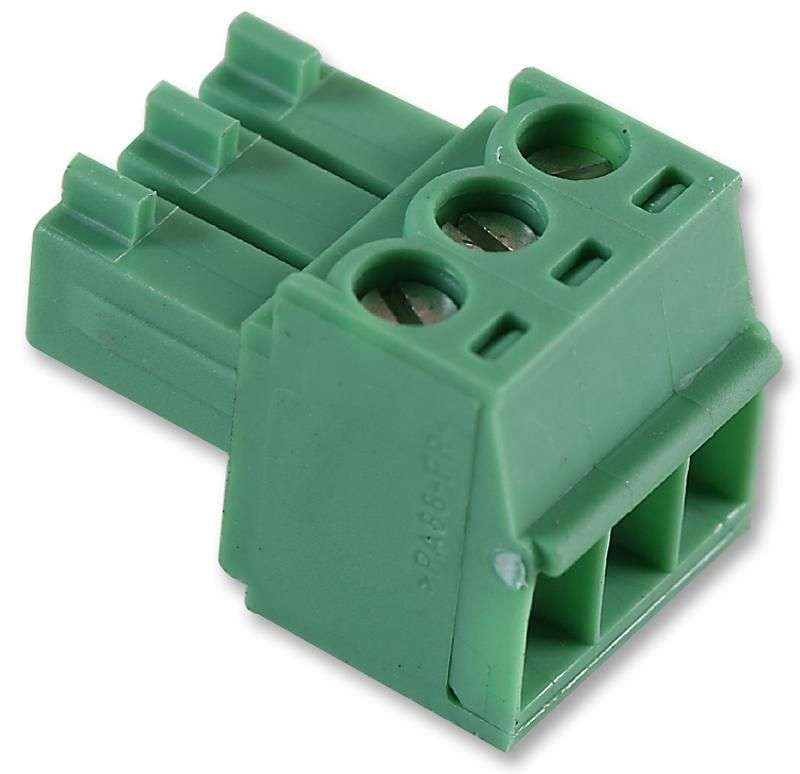

Phoenix Contact (MC 1,5/3-ST-3,5) Pluggable Terminal Block, 3.5 mm, 3 Ways

Pluggable Terminal Block, 3.5 mm, 3 Ways, 28AWG to 16AWG, 1.5 mm², Screw, 8 AProduct OverviewThe MC 1, 5/3-ST-3, 5 from Phoenix Contact is a 3 position pluggable terminalblock with screw connection. This terminal block comes with 3.5mm pitch spacingand suitable for wire size ranging from 28AWG to 16AWG.Green colour insulationTin contact surfacePlug-in direction parallel to the conductor axisIndividual position coding by removing the coding tab & connecting the codingprofile to the headerPolyamide (PA) insulating materialUL94 V-0 flammability ratingCSA, VDE, IECEE CB, CCA, EAC and cULus recognizedDimension of terminal block is 11.1mm x 10.5mm (H x W)ApplicationsIndustrialProduct InformationPitch Spacing: 3.5mmNo. of Positions: 3WaysWire Size (AWG): 28AWG to 16AWGWire Size AWG Min: 28AWGWire Size AWG Max: 16AWGConductor Area CSA: 1.5mm²Wire Connection Method: ScrewRated Current: 8ARated Voltage: 160VProduct Range: MC
