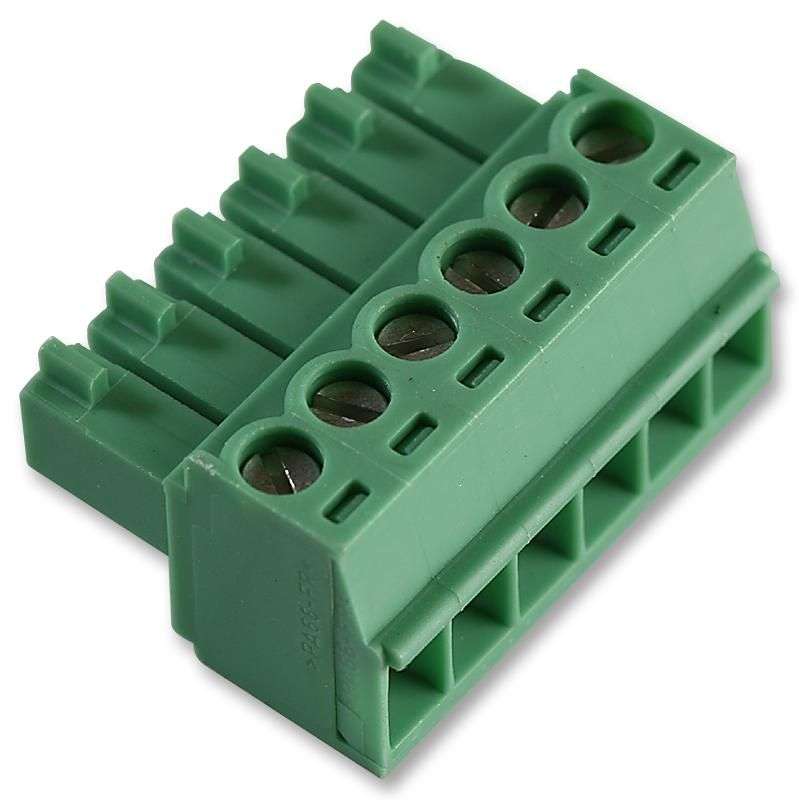

Phoenix Contact (MC 1,5/6-ST-3,5) Pluggable Terminal Block, 3.5 mm, 6 Ways

Pluggable Terminal Block, 3.5 mm, 6 Ways, 28AWG to 16AWG, 1.5 mm², Screw, 8 AProduct OverviewThe MC 1,5/6-ST-3,5 is a 6-position green pluggable PCB Terminal Block withtin-plated contacts, a polyamide insulator and M2 screw connection. This 1840405terminal block provides individual position coding by removing the coding taband connecting the coding profile to the header. It accepts 28 to 16AWG wirerange.Generously dimensioned wiring spaceLow design height of the MC 1,5 plug rangePlug-in direction parallel to the conductor axis7mm Stripping lengthUL94V-0 Flammability ratingApplicationsIndustrialProduct InformationPitch Spacing: 3.5mmNo. of Positions: 6WaysWire Size (AWG): 28AWG to 16AWGWire Size AWG Min: 28AWGWire Size AWG Max: 16AWGConductor Area CSA: 1.5mm²Wire Connection Method: ScrewRated Current: 8ARated Voltage: 160VProduct Range: MC
