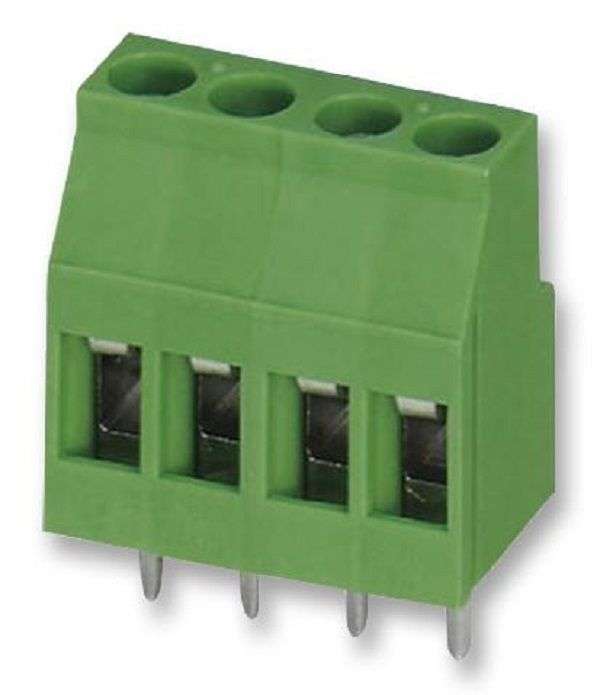

Phoenix Contact (MKDS 3/ 3-5,08) Wire-To-Board Terminal Block, 5.08 mm

Phoenix Contact (MKDS 3/ 3-5,08) Wire-To-Board Terminal Block, 5.08 mm

New 3975 available
R239.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 7 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
3041177
Bob Shop ID
645119363
Wire-To-Board Terminal Block, 5.08 mm, 3 Ways, 24 AWG, 12 AWG, 4 mm², ScrewProduct OverviewThe MKDS 3/ 3-5, 08 from Phoenix Contact is a through hole, 3 position PCBterminal block with 5.08mm lead spacing. Terminal block is made of PA insulatingmaterial and suitable for wire size ranging from 24AWG to 12AWG.Dimension of terminal block is 11.21mm x 15.24mm x 23mm (L x W x H)Green colour terminal blockSn solder pin surfaceHole diameter of 1.3mmUL94 V-0 inflammability ratingCSA, SEV, GL, CCA, EAC, UL, RS, IECEE CB scheme, cUL and cULus recognizedScrew connectionRight angle wire orientationApplicationsIndustrialProduct InformationPitch Spacing: 5.08mmWire Size AWG Min: 24AWGWire Size AWG Max: 12AWGConductor Area CSA: 4mm²Wire Connection Method: ScrewRated Current: 24ARated Voltage: 400VBlock Orientation: Through Hole Right AngleProduct Range: MKDS
