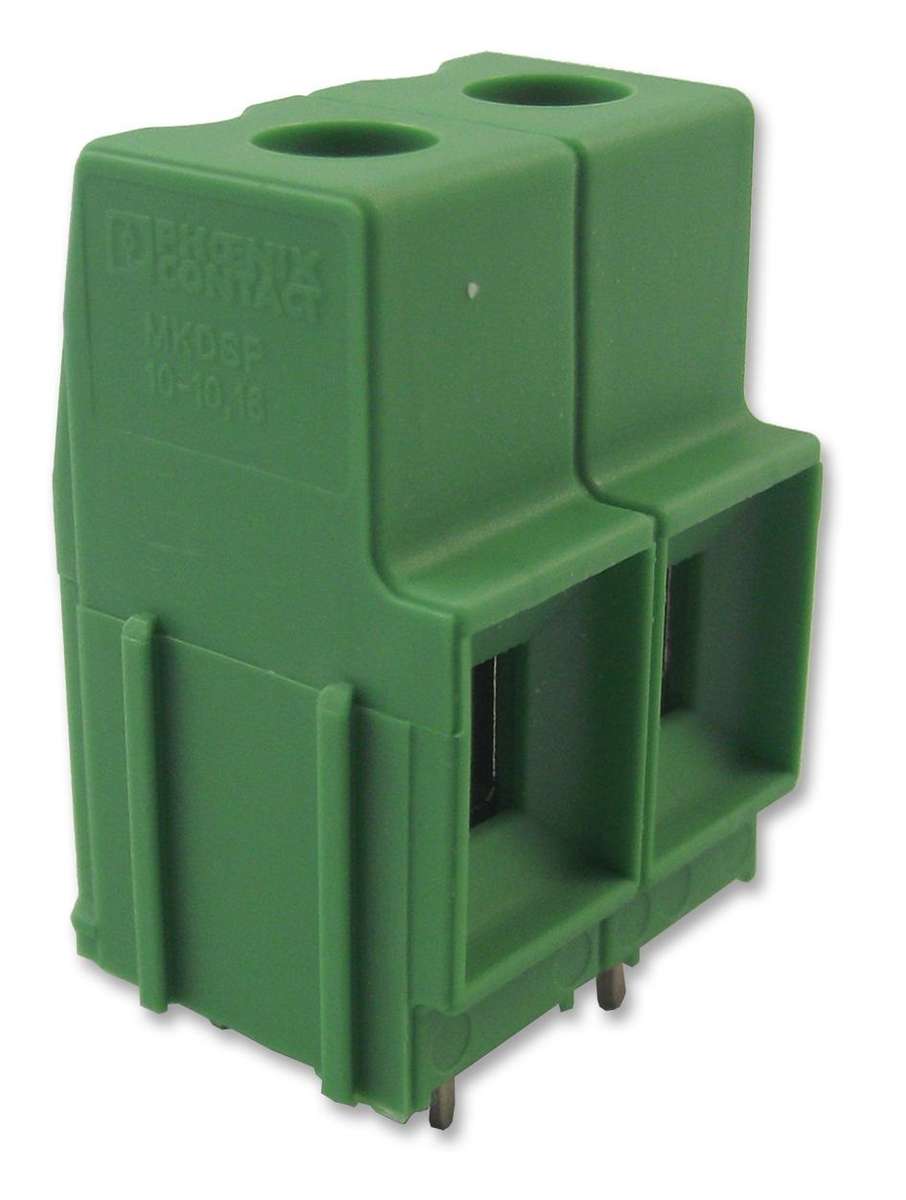

Phoenix Contact (MKDSP 10N/2-10,16) Wire-To-Board Terminal Block, 10.16 mm

Wire-To-Board Terminal Block, 10.16 mm, 2 Ways, 20 AWG, 6 AWG, 16 mm², ScrewProduct OverviewThe MKDSP 10N/2-10,16 is a 2-position green PCB Terminal Block with tin-platedsolder contacts, a polyamide insulator and the M4 screw connection. This 1774137high-capacity PCB terminal block has screw connection up to 16mm², stranded anda current carrying capacity of 76A. Terminal block bases that can be mountedside by side to create any number of positions. It accepts 20 to 6AWG wirerange.Integrated test connectionIndividual adjustment of voltage requirements using RZ pitch spacers10mm Stripping lengthUL94V-0 Flammability ratingApplicationsIndustrialProduct InformationPitch Spacing: 10.16mmWire Size AWG Min: 20AWGWire Size AWG Max: 6AWGConductor Area CSA: 16mm²Wire Connection Method: ScrewRated Current: 76ARated Voltage: 1kVBlock Orientation: Through Hole Right AngleProduct Range: MKDSP
