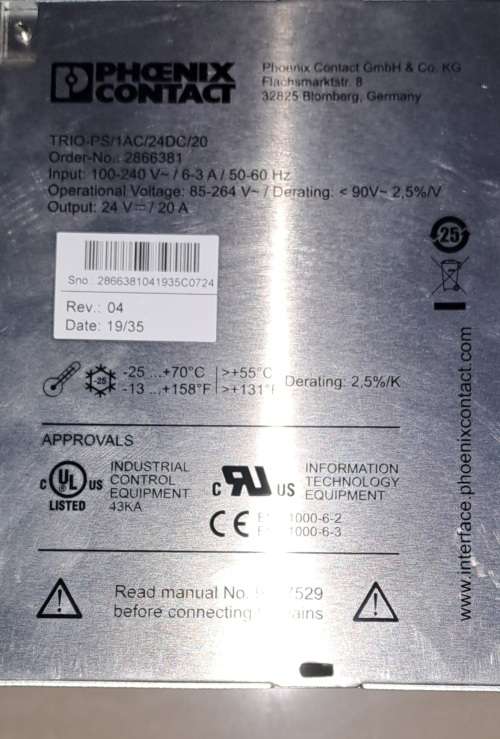

Phoenix contact power supply (TRIO-PS/1AC/24DC/20)

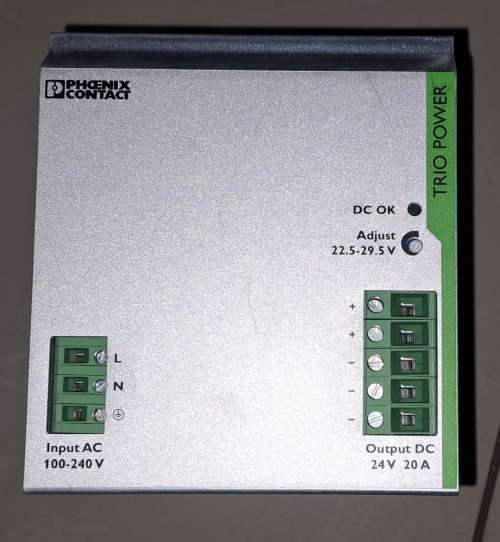

The TRIO-PS/1AC/24DC/20 is a 1-phase DIN-rail mount primary switched Power Supply with basic functions. It is particularly suited for use in series production in mechanical engineering. The high MTBF of 500000-hour stands for high supply reliability. The device can be connected in parallel to increase the capacity and redundancy. The clear LED signalling and the device connection with double terminal block for plus and minus for fast potential distribution are further advantages of this device series. A third terminal block for minus simplifies the grounding on the secondary side. All power supply unit is idle proof and short circuit proof and provide a regulated and settable output voltage of 22.5 to 29.5VDC.  The unit does not come in its original box, the box was damaged

Reliable power supply unit even at high ambient temperatures

No load and short circuiting resistance

High dielectric strength

<1s Typical response time

10A Fuse (slow-blow, internal)

16A Recommended backup fuse for mains protection (characteristic B)

<3.5mA Discharge current to PE

46W Maximum power loss nominal load

4W Maximum power dissipation idling

>91% Efficiency

IP20 Protection rating
