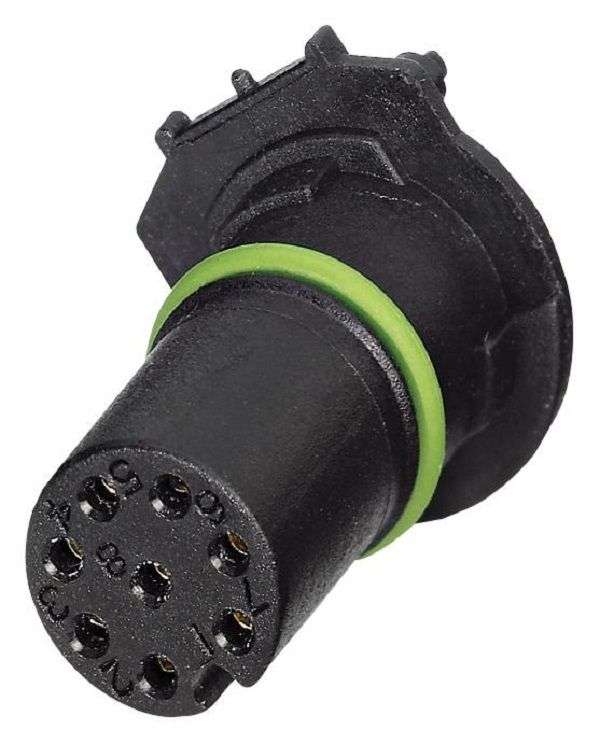

Phoenix Contact (SACC-CI-M12FS-8CON-L180-THR) Sensor Connector, M12, Male

Sensor Connector, M12, Male, 8 Positions, PCB Pin, Straight PCB MountProduct OverviewThe SACC-CI-M12FS-8CON-L180-THR is a 8-position PCB mounting sensor/actuatorFlush-type Socket with straight THR solder connection. It has gold-plated copperzinc alloy contacts and PPA contact carrier. It is easy device integration dueto mechanical port screw connections with threaded attachment, press-in contouror direct integration in the front plate.Additional gasket for the device when not plugged-in2A Rated current at 40°C30V Rated voltage0.8kV Rated surge voltage=100MR Insulation resistanceIP67 ProtectionApplicationsSensing & Instrumentation, Signal ProcessingProduct InformationSensor Connector Gender: MaleNo. of Positions: 8 PositionsNo. of Contacts: 8ContactsSensor Contact Type: PCB PinSensor Connector Mounting: Straight PCB MountConnector Coding: A CodedConnector Body Material: Nylon (Polyamide) BodyContact Material: BrassContact Plating: GoldCurrent Rating: 2AVoltage Rating: 30V
