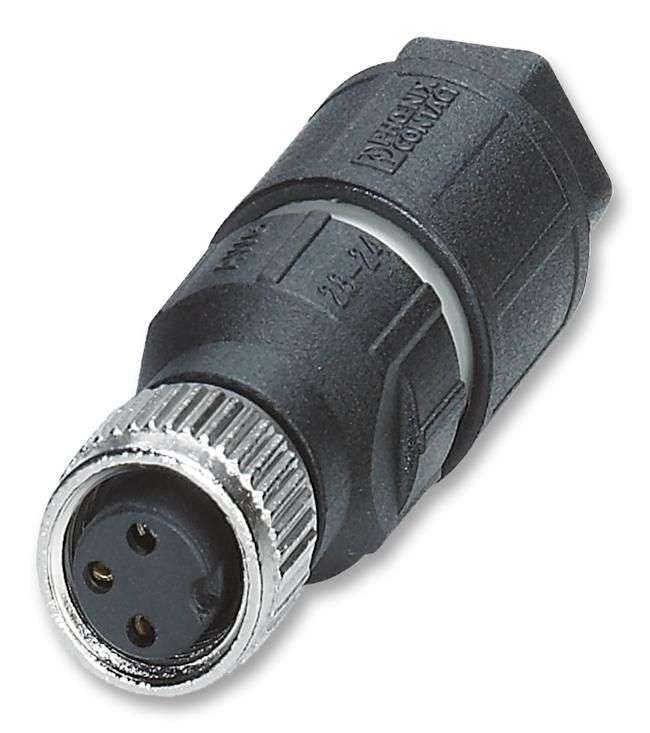

Phoenix Contact (SACC-M 8FS-3QO-0,5-M) Sensor Connector, M8, Female

Sensor Connector, M8, Female, 3 Positions, IDC / IDT Socket, Straight CableMountProduct OverviewThe SACC-M 8FS-3QO-0,5-M is a 3-position M8 A-coded sensor/actuator StraightSocket with insulation displacement connection. It has CuSn contacts,glass-filled TPU contact carrier and a PA 66 (polyamide 66) grip body.Nickel-plated zinc die-cast knurlFlexible connector for on-site assembly4A Rated current at 40°C60V Rated voltage=100MR Insulation resistance0.25 to 0.5mm² Conductor cross sectionIP65 and IP67 ProtectionApplicationsSensing & InstrumentationProduct InformationSensor Connector Size: M8Sensor Connector Gender: FemaleNo. of Contacts: 3ContactsNo. of Positions: 3 PositionsSensor Contact Type: IDC / IDT SocketSensor Connector Mounting: Straight Cable MountIP / NEMA Rating: IP65, IP67Connector Coding: A CodedConnector Body Material: Nylon 6 (Polyamide 6) BodyContact Material: BronzeContact Plating: GoldVoltage Rating: 60V
