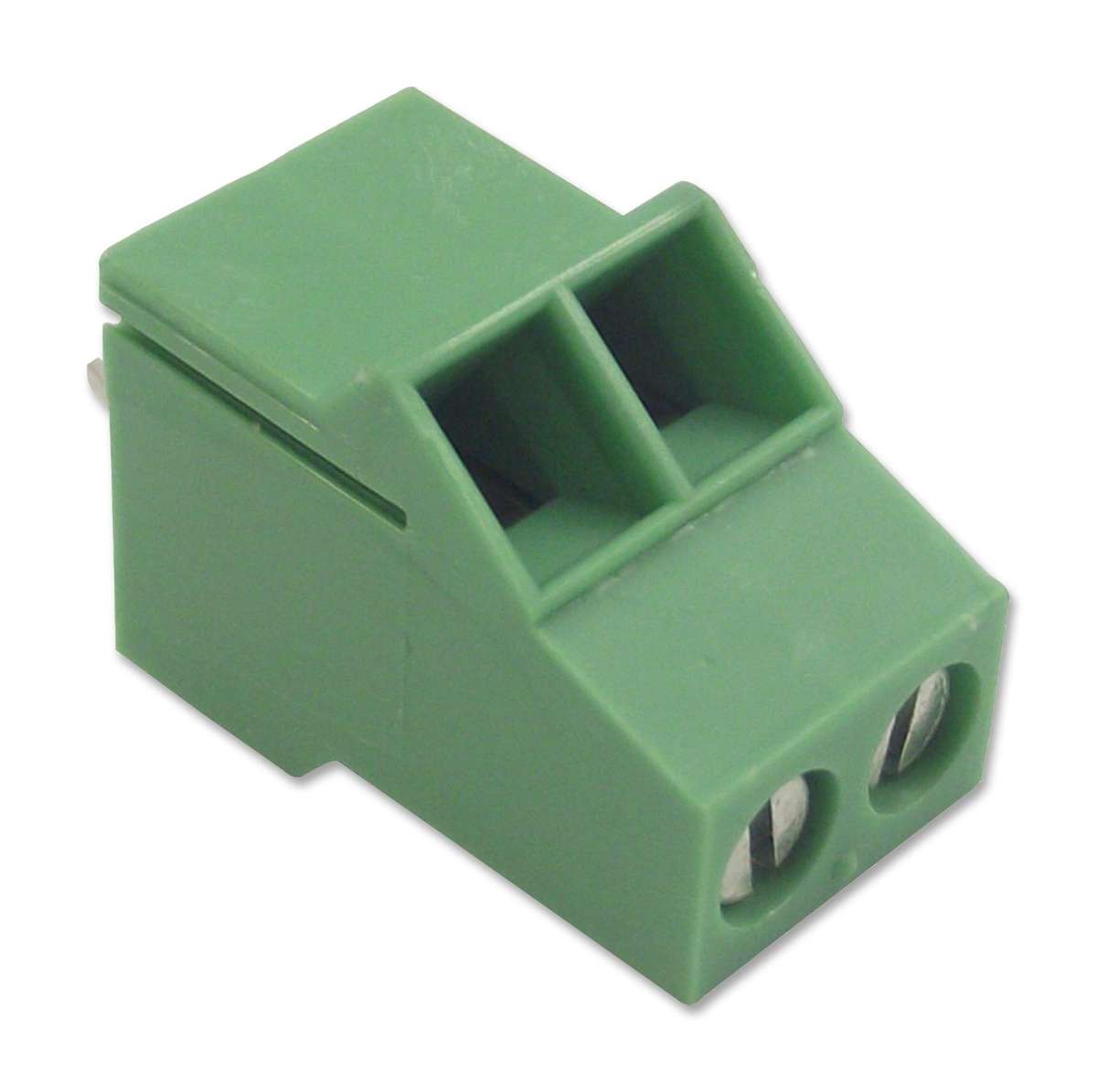

Wire-To-Board Terminal Block, 5.08 mm, 2 Ways, 26 AWG, 14 AWG, 2.5 mm², ScrewProduct OverviewThe SMKDS 2,5/ 2-5,08 is a 2-position green PCB Terminal Block with tin-platedsolder contacts, a polyamide insulator and the M3 screw connection. This 1705469terminal block has fully developed contact geometries and surfaces. It accepts26 to 14AWG wire range.PCB terminal block with 40° angled connection directionScrewdriver axis vertical to the PCB11mm Stripping lengthUL94V-0 Flammability ratingApplicationsIndustrialProduct InformationPitch Spacing: 5.08mmWire Size AWG Min: 26AWGWire Size AWG Max: 14AWGConductor Area CSA: 2.5mm²Wire Connection Method: ScrewRated Current: 20ARated Voltage: 400VBlock Orientation: Through Hole 40°Product Range: SMKDS
