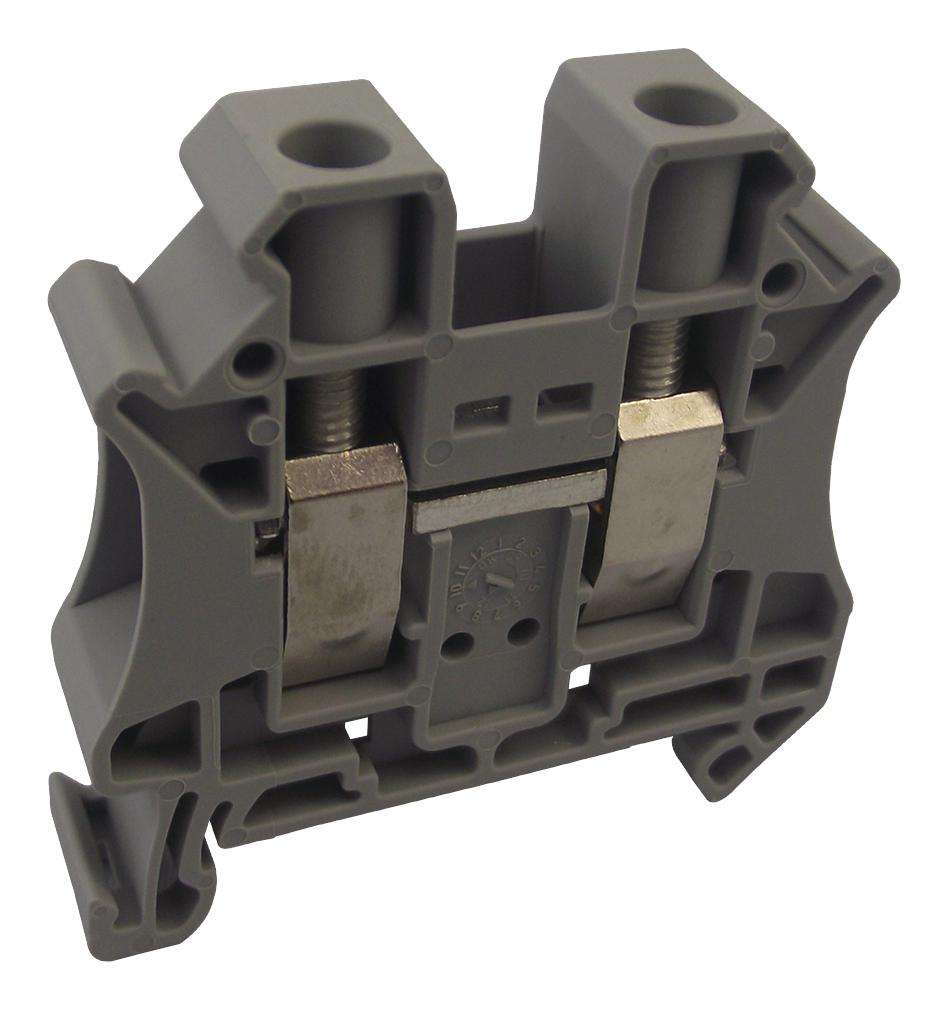

Phoenix Contact (UT 10) DIN Rail Mount Terminal Block, 2 Ways, 20 AWG

DIN Rail Mount Terminal Block, 2 Ways, 20 AWG, 6 AWG, 16 mm², Screw, 76 AProduct OverviewThe UT 10 is a 2-position 1-level grey Feed-through Terminal Block with apolyamide insulator, the screw connection and the NS 35/7,5, NS 35/15 mounting.This 3044160 terminal lock has the compact design enables user-friendly wiringin a small amount of space. The large wiring space enables the connection ofsolid and stranded conductors without ferrules, even above the nominal crosssection. The cable entry funnel enables the use of conductors with ferrules andplastic collars within the nominal cross section. It accepts 20 to 6AWG wirerange.Half-sine shock formOptimum screwdriver guidance through closed screw shaftsMulti-conductor connection offers maximum flexibility and wiring density10mm Stripping lengthUL94V-0 Flammability ratingApplicationsIndustrial, Automation & Process ControlProduct InformationWire Size AWG Min: 20AWGWire Size AWG Max: 6AWGConductor Area CSA: 16mm²Wire Connection Method: ScrewRated Current: 76ARated Voltage: 1kVNo. of Levels: 1Product Range: UT
