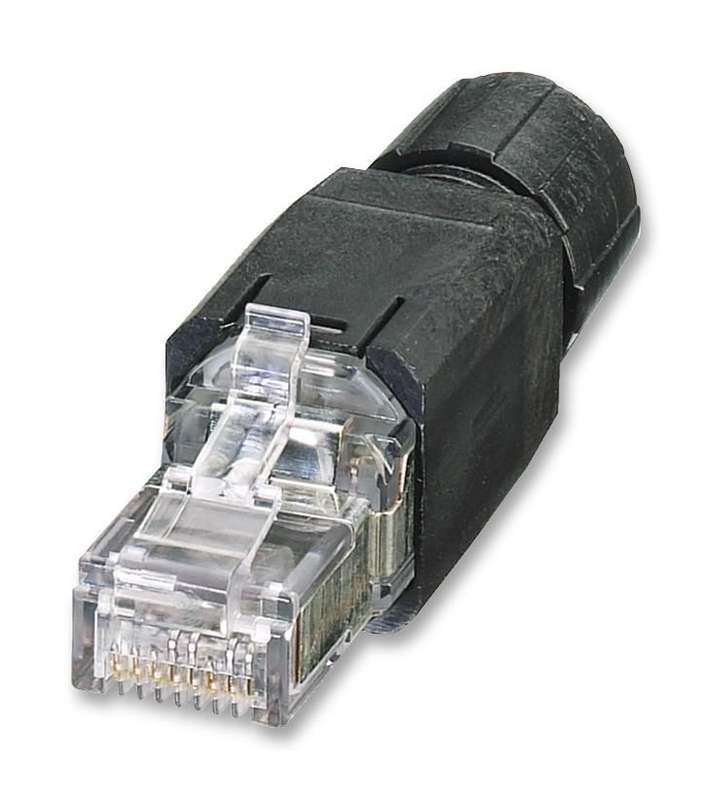

Phoenix Contact (VS-08-RJ45-5-Q/IP20 BK) Modular Connector, RJ45 Plug

Modular Connector, RJ45 Plug, 1 x 1 (Port), 8P8C, Cat5, IP20, Cable MountProduct OverviewThe VS-08-RJ45-5-Q/IP20 BK is a 8-position black RJ45 Connector with gold overnickel plated copper alloy contacts, a polyamide housing and a PC contactcarrier. This 1658008 CAT5 plug has QUICKON fast connection technology, TIA 568B marking, IDC fast connection method, straight cable exit, CAT5 (IEC11801:2002) transmission characteristics (category). It s suitable for 26 to23AWG 1-wire and 7-wire conductors, 4.5 to 8.0mm cable diameter.1.75A Rated currentIP20 Protection ratingUL94V-0 Flammability ratingApplicationsIndustrialProduct InformationModular Connector Type: RJ45 PlugPort Configuration: 1 x 1 (Port)No. of Contacts: 8ContactsNo. of Positions / Loaded Contacts (per Port): 8P8CNo. of Positions: 8WaysLAN Category: Cat5IP Rating: IP20Connector Mounting: Cable MountNo. of Ports: 1PortsConnector Orientation: VerticalContact Termination Type: IDC / IDTShielding: ShieldedMagnetics: Without MagneticsContact Plating: Gold Plated ContactsLEDs: Without LEDContact Material: Copper AlloyLight Pipes: Without Light PipeProduct Range: PLUSCON
