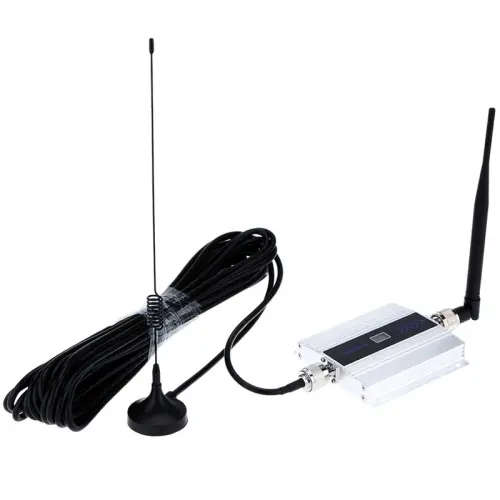

Product | Phone Cell Signal Booster Antenna Repeater 4g Cellular Amplifier Lte Mobile Kit (Option: Type EU plug) |
Important Information | Certain products consists of different variations and options as indicated at the end of the product title. If you require more information on a product or have any pre-sale questions, please feel free to inquire. Product images shown are for illustration purposes only and will only include the product(s) as per the description, title and option(s) if indicated. Please confirm stock availability before purchasing. |
Specification: Model: No.OS-B101 Item: GSM900 Mini Repeater Frequency Range: #Uplink: 890-915MHZ #Downlink: 935-960MHZ Max Output Power: #Up link: 17±2dBm #Downlink: 17±2dBm Gain: #Up link: Gp>=60dB #Downlink: Gp>=65dB Connector Type: N Female Impedance:50 ohms Power:-70 ~ -40dBm/FA (1.23MHz) Power Supply:AC 110/220V (used AC/DC Adapter 5V dc) Seclusion:>70dB LCD:YES Package Weight:0.38kg Compact Design:Indoor Use Plug type: EU Plug / US Plug Ambient temperature:-10°C~60°C Demension:About 130 x 100 x 20mm Features: -Easy to install. -Improve Gsm 900 -It's a real bargain ,Hot -LED signal light indicates the signal status. -High gain ,easy installation and operation. -Support operators GSM 900 frequency band -Full-duplex,singal-port design,build-in power supply. -Coverage: Max 200 square meters without barriers -Support more than 20 cell phones to use at the same time Signal coverage area : 1.Support Maximum coverage area is 200 square meters. ( Depend on the area condition) 2.One indoor antenna only use for about 50~100 square meters. If want to make all use of 200 square meters which the host supports, need to add more celiing indoor antennas and power divider / splitter. Package Included: 1 x GSM 900MHz signal booster. 1 x 5dBi Sucker Antenna 1 X Omni Rubber Antenna 1 x Power adapter |
