PicoPatch Antenna 5.8Ghz Polarised Receiver Patch
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
Product Description
The PICO patch antenna is our smallest receiving patch that is big in performance, perfect partnering with a circular polarized omni style transmitter antenna.
Features
Highest Sensitivity for increased range
Ergonomic design to fit diversity modules on goggles
Can stay on your goggles in the carry case.
5.8ghz Frequency Bands Compatible
Circular Polarized for left or right hand
Designed for goggles or base stations.
Great for diversity setups.
Specification
Frequency Range: 5645 — 5945 Mhz
Gain: 9.4 dBi
Beam Width: 61 at -3db points

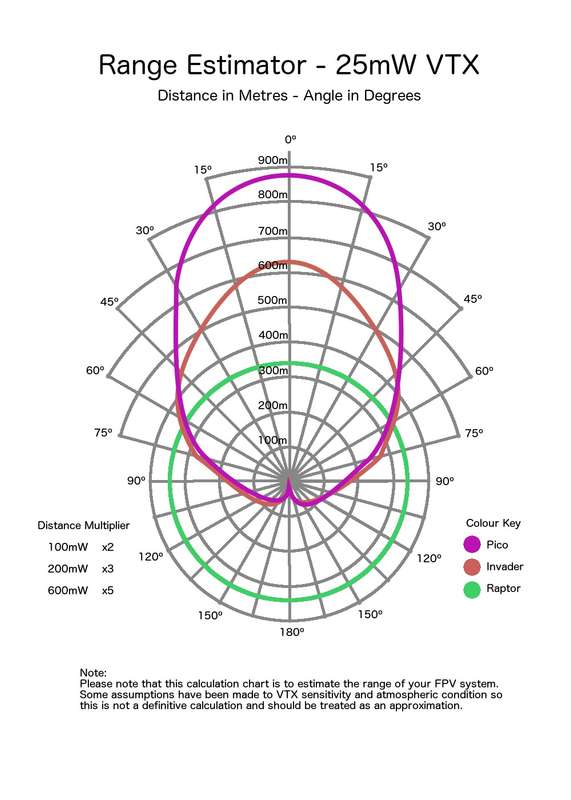

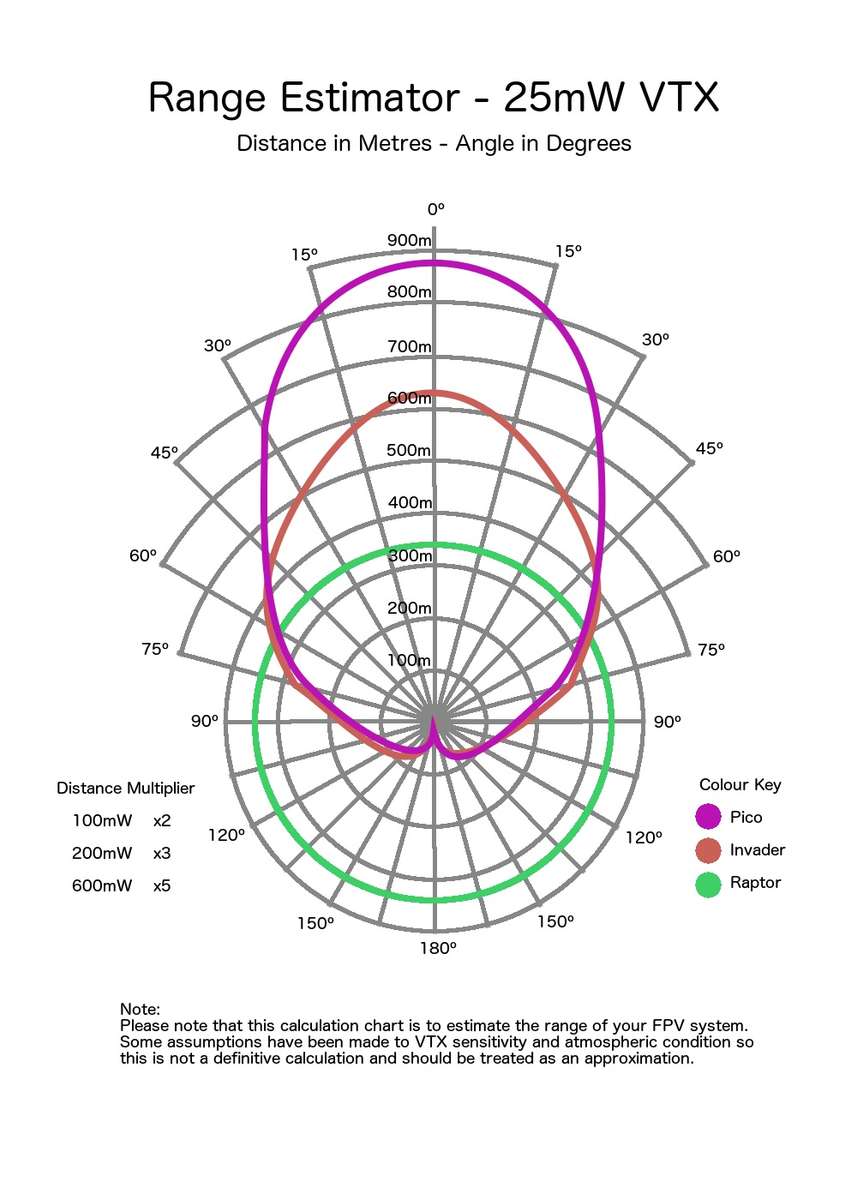

(Check polar plot comparison invader actual angular db)
Left or Right Hand Circular Polarized (LHCP or RHCP)
SMA Connector (Fits Fatshark Goggles)
Dimensions: 37.0mm x 33.6mm x 19.2mm
Weight: 10 grams
Real World
25mW Range tested to 1.33km
60% increase in range over a 5db patch
20% increase in range over a 8db patch
38% increase range over the Invader patch
Reduced multi path propagation compared to 360 degree omni style receiving antenna's.
