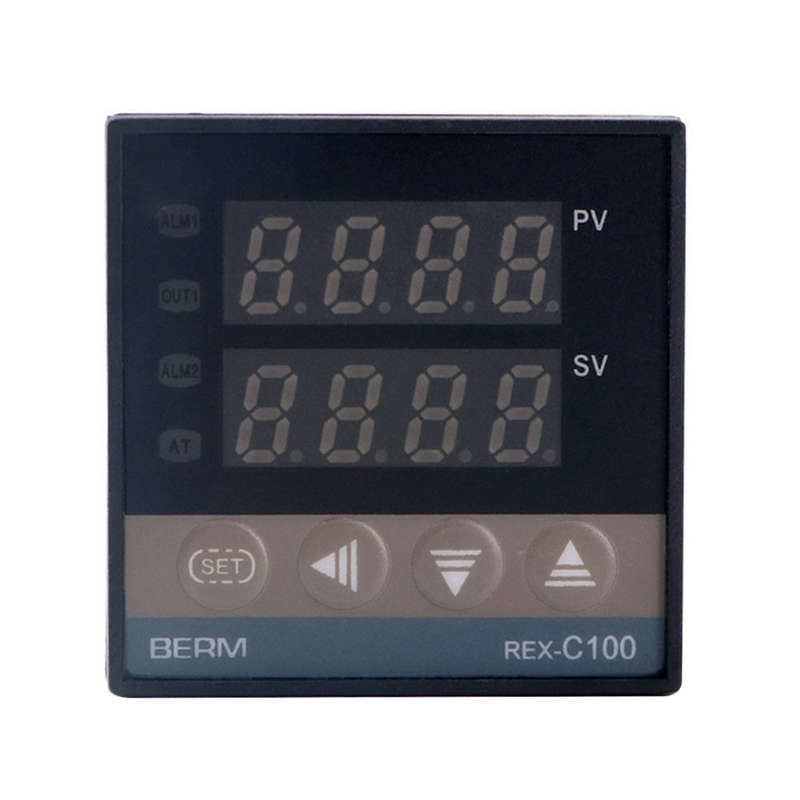

PID Digital Intelligent Temperature Controller REX-C100FK02-V*DN 0-400C K Type Input SSR Outp

The PID digital intelligent temperature controller is easy to operate to control temperature, used for mechnical and other automatic control systems.

Features:
Pid heating / cooling control.
7 different dual output combinations: high / low / high deviation / low deviation / interval / out of range / break alarm.
Individually programmable pid control parameters, P, i, d, control period, digital filter coefficient, and more.
Relay control ready to connect.
Compact design, Din 1/8 great form factor to be included / build-in for your product.

Specifications:
Type: 220V CK long, 100-240V CK long, 100-240V DK short (optional)
Material: ABS
Color: Black
Display: Dual display for celsius (￢ﾄﾃ)
Range: 0-400￢ﾄﾃ (only when using factory k type thermocouple)
Thermocouple: Type K
Main Output: SSR
Accuracy: 0.5%
Input: Type K
Noise: 1/16
Alarm Output: 1 output line, 7 types of alarm mode: high / low / high deviation / low deviation / interval / out of range / break alarm.
Control Output: SSR
Package Weight:ￂﾠ
ￂﾠ ￂﾠ220V CK long: 183g / 6.46ounces
ￂﾠ ￂﾠ100-240V CK long: 129g / 4.55ounces
ￂﾠ ￂﾠ100-240V DK short: 107g / 3.77ounces
Package Size:ￂﾠ
ￂﾠ ￂﾠ220V CK long: 107 * 48 * 48mm / 4.21 * 1.89 * 1.89in
ￂﾠ ￂﾠ100-240V CK long: 107 * 48 * 48mm / 4.21 * 1.89 * 1.89in
ￂﾠ ￂﾠ100-240V DK short: 86 * 48 * 48mm / 3.39 * 1.89 * 1.89in

Packing List:
1 * Temperature Controller
1 * Fixed Bracket
ￂﾠ
