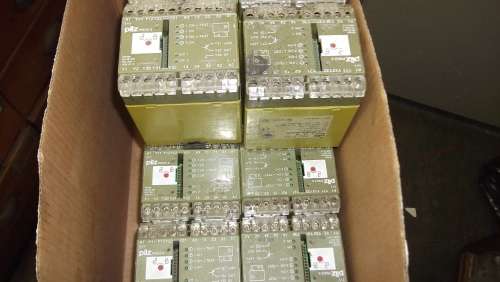

Secondhand 10 were available
R10.00 minimum increment
R80.00
Shipping
R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection

Product details

Condition
Secondhand
Location
South Africa
Product code
BOX 013
Bob Shop ID
640800909

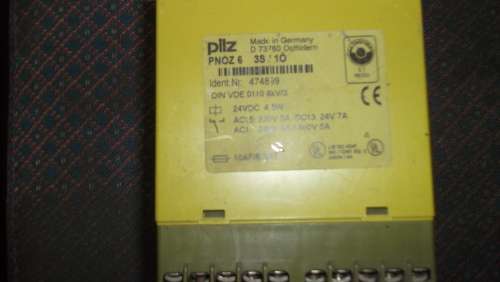

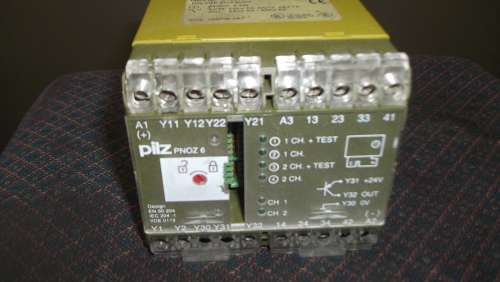

Pilz Configurable 24 V dc Safety Relay Single or Dual Channel with 4 Safety Contacts

PLEASE NOTE : NO RED PLUG IN CARDS

NO RESERVE

SHIPPING : R60.00



Product Details

PNOZ/6 Safety Relays

Multi-input circuit options, 16 variations obtained via plug-in module supplied
Single or dual channel input

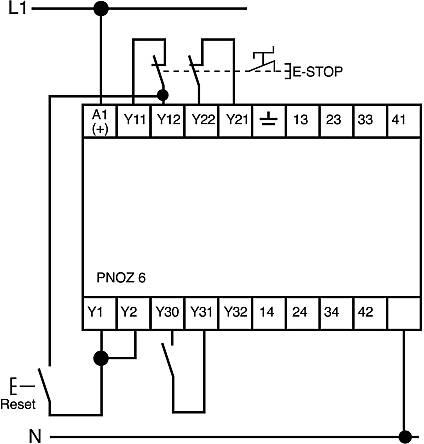

Can be used as emergency stop unit or safety gate monitor
Contact rating on safety circuit: 8A
Semiconductor output specifically designed to interface with PLCs
Recognises short circuited inputs
Allow extra 20mm on depth of unit for the plug-in card

 Approvals

TUV, BG, CSA

Standards

VDE 0113; EN 60204-1; IEC 204-1

Specifications

AttributeValue
Supply Voltage24 V dc
Number of Channels1, 2
Safety Contacts4
Terminal TypeScrew
ConfigurableYes
Depth110mm
Width90mm
Length75mm
